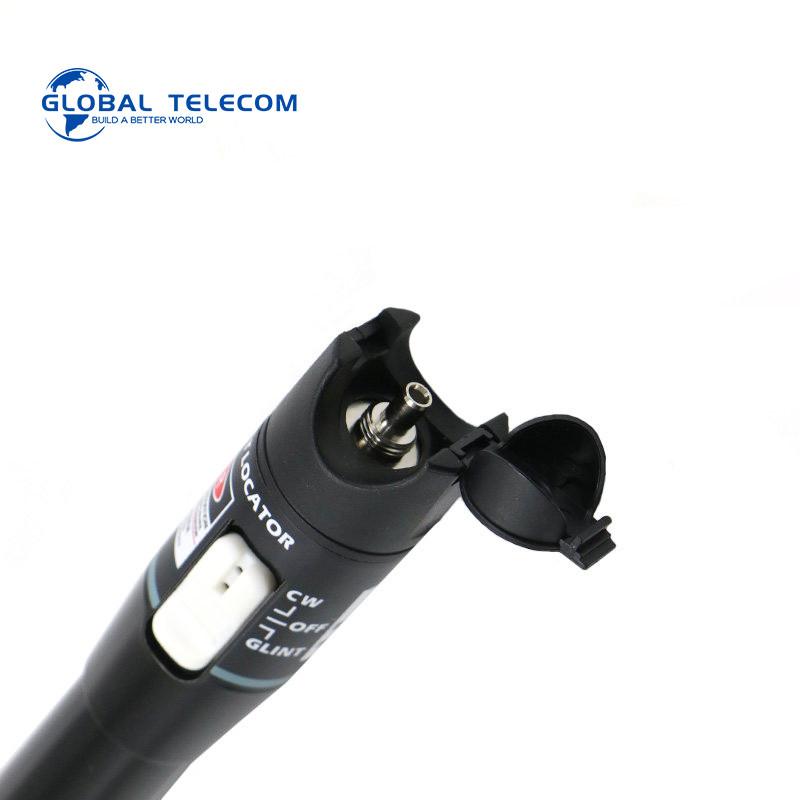

FTTH 50mW Fiber Optic Visual Fault Locator

VFL Aluminum Alloy for 2.5 mm Universal Connector

Description:

Pen-design Visual Fault Locator (VFL), pen-size and light, outputs the visible red laser, and can be used for locating optical broken point which OTDR can't find and area of high loss caused by bending. It is suitable for both single mode and multimode fiber.

Features:

Support CW and 2Hz modulation work mode

--Solid: use special laser end design to avoid damage when dropping on the floor.

--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.

--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.

--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.

Wavelength 650nm±10nm Light source FP-LD laser Output power 1mW, 5mW, 10mW Approx. test range 3-5km(1mw), 8-10km(10mw), 12-15km(15mw) Connector 1mW, 5mW, 10mW,15mW, 20mW,25mw,30mw, 50mw((optional) Working mode CW or 2Hz modulation Operating temperature 0~+40 °C Storage temperature -25~+70 °C Power 2pcs AA battery Working hours ≥ 60(1mW)

Shenzhen Huayixin Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. Huayixin win the honorary title of National High-tech enterprise by Shenzhen government in 2019.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3600 square meters and more than 26 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 6 production lines for fiber optic cable, 3 high standard MPO/MTP jumper assembly lines, 6 production lines for standard jumper and 8 PLC Splitter production lines.3 production lines for fast connectors.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and EXFO ,VIAVI OTDR ,JGR and so on.

All of our optical products are RoHS compliant and Huayixin also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Carefiber exports its fiber optical products to overseas market such as to France, Germany, England, America, Mexico,Brazil ,South Africa ,Ecuador ,Peru etc. Huayixin fiber optic is looking forward to cooperate with you.
