Tumtec FST-18S FTTH fusion splicer
FST-18S splicing machine is FTTx active cladding alignment fusin
splicer;Industiral quard core CPU,high quality and low loss; 5''
high resolution color LCD touch screen,400X magnification,visible
clearly with bare eyes;Packed with detachable 5200mAh battery,more
than 250 times of splicing and heating;3 high-power white LEDs and
illuminated keypads simplifies your work at night;German CNC
technique and integrated fiber-adjust frame, which make performance
much stable;Built -in Japanese components and Korean
chipset.Detachable multifunction fixture,suitable for various fiber
types;Dust-proof,water-proof,high temperature resistance,adapting
to various altitude and harsh environment.
18S mainly suitable for FTTH construction,high quality and low
loss;precise alignment clad alignment ; portable size, ruggedized
housing, can used in harsh environment.
01,The color of the machine is black, golden and red. It is specially
used for short distance work and maintenance of optical fibers from
home.
02,Welding machine after adjustment and calibration precision, try to
avoid the impact and vibration of strong, long distance
transportation please carry the box to use special.
03,With a handle, easy to carry,the display screen can reach the
optimum angle for easy operation.
04,Large capacity batteries up to 5200 mAh , ultra-Mini USB 2.0 port.
05,With three high-power LED white lights.
06,5-inch 800*480 color high resolution capacitive touch screen,
double-click can achieve 400 times the focus amplification effect.
| Operating Methods | Button/Touch Screen |
| Display | 90° bi-directional view,4.3" high resolution display with touch
screen |
| Heating tank | Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100
modes |
| Typical Splice Loss | SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T
Standard) |
| Appicable Fibers | SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T
G.653),NZDS(ITU-T G655) |
| Heating times | typical above 180 times(splicing+heating) |
| Fiber View & Magnification | X,Y,XY,X/Y:380×Magnification |
| Automatic Calibration | Automatic ARC calibration by air pressure and temperature |
| Electrode Life | 3000 ARCS, can be extended by using an electrode grinder |
| Operating Condition | 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind
15m/s |
| Storage Condition | 0~95% relative humidity, -40~80℃; battery storage: -20~30℃ |
Customer Case

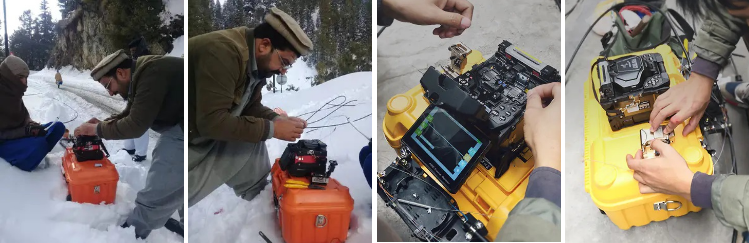

1. The actual feedback from Pakistani users: the FST-18S fusion
splicer has been in use for more than a year, worked in harsh
outdoor environment mostly, still in good condition;
2. The actual feedback from the FoShan construction team: the
splicing machine is well equipped, stable and effective;
