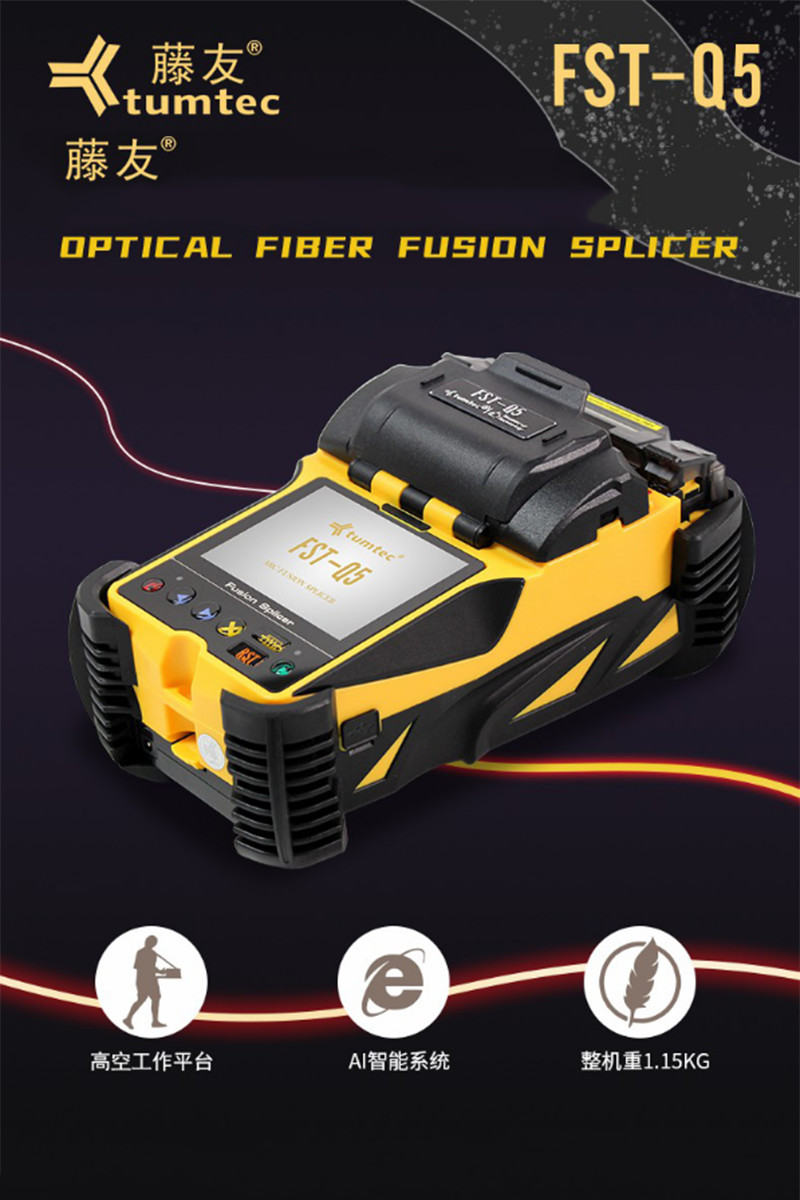

FST-Q5 is a new fusion splicer developed by Guangdong Tumtec. The
performance is no different from the same level fusion splicer,but
it is smaller and lighter than the traditional optical fusion
splicer.
FST-Q5 appearance

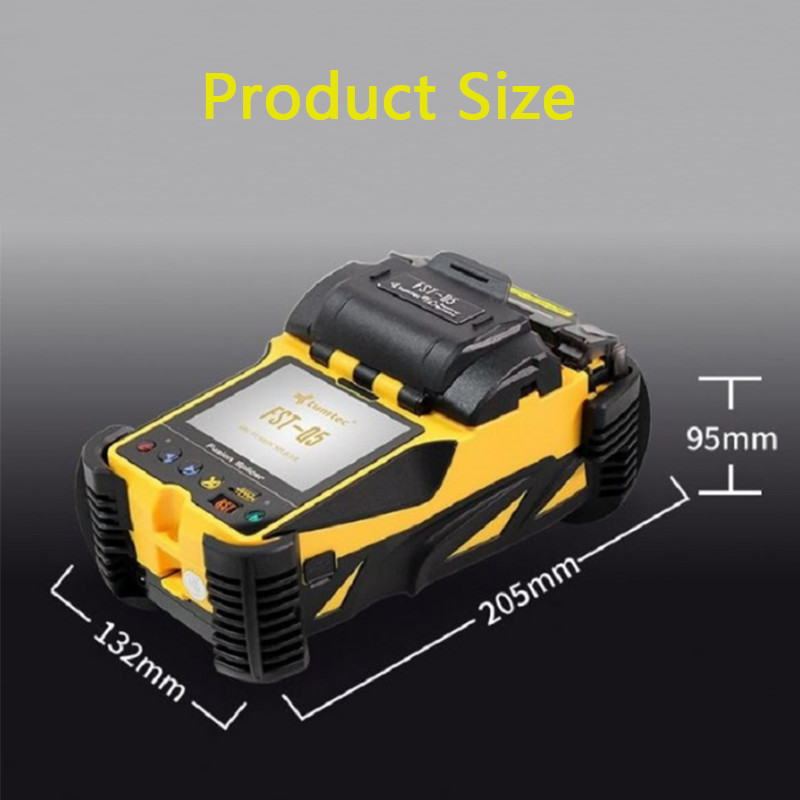

The shape is more like a slightly enlarged pos machine, with rubber
bumper,the width and height of 132mm/205mm/98mm. Because it’s a
hand-held fusion splicer, the requirements for drop resistance are
higher, so the four corners are specially strengthened to prevent
the machine from falling from high places. However, the side also
reflects that FST-Q5 can cope with drops from heights very well.
It feels better in one hand because it has four-corner
high-thickness drop-resistant rubber. You can hold it in one hand
and put the fiber in the other hand, just like holding a POS
machine to swipe a card or play with a mobile phone.
The weight is very light, only 1.15kg (with rubber bumper). Easy
for carrying is daily life.
Specification
4 motors core to core alignment

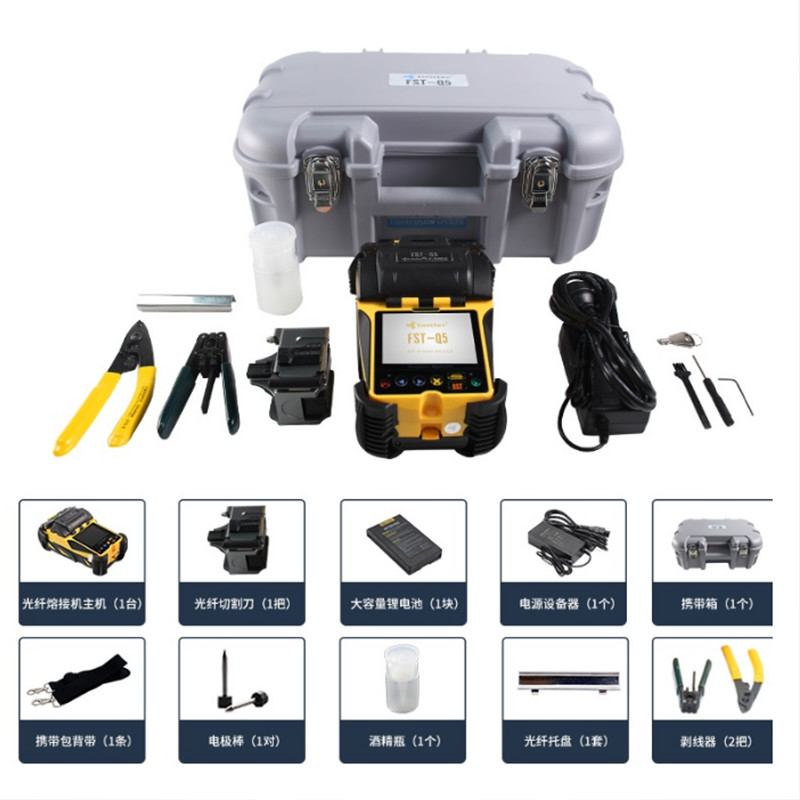

Equipped with a lightweight metal five-in-one durable fiber clamp
Low splicing
loss(SM:0.03dB/MM0.02dB/DS:0.05dB/NDS:0.05dB/G657E0.03Db/G654E0.01Db)
Support more than five types shrinkable tubes (20/30/40/50/60mm)
6 seconds splicing, 13 seconds heating, over 120 times for
splicing&heating
Performance parameters is better than most fusion splicers
Small body and high integration
Fusion splicer FST-Q5 is not only light, but also good in
performance. Adapted to the needs of equipment intelligence and
miniaturization. In daily work, a stable, small and portable
optical fiber fusion splicer can greatly improve job satisfaction.
