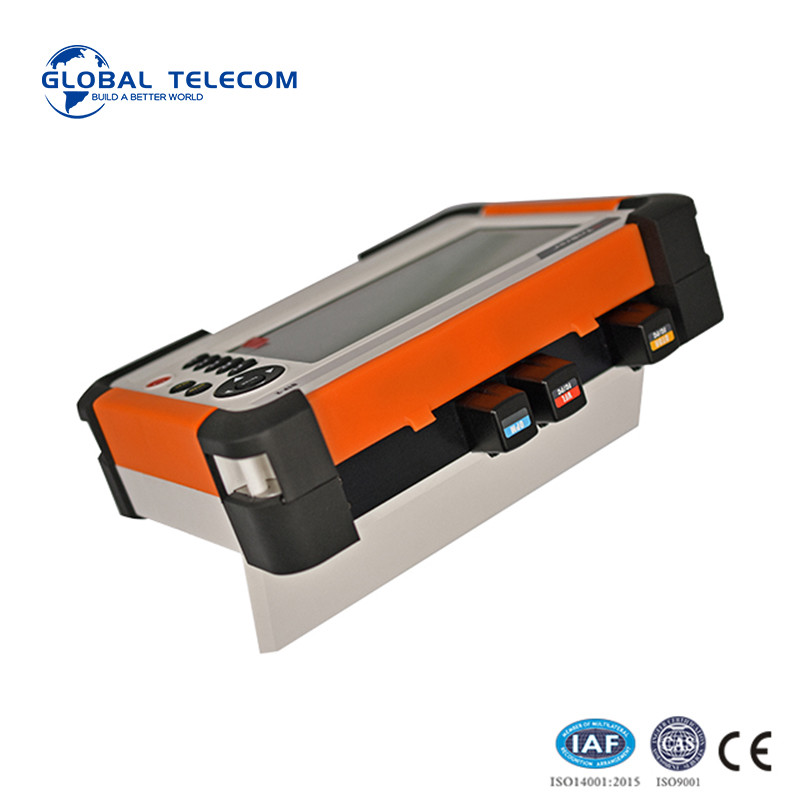

    TriBrer OTDR Testing Machine 1310 1550 1625nm SM MM PON OTDR

    Ask Lasest Price
    Brand Name : TriBrer

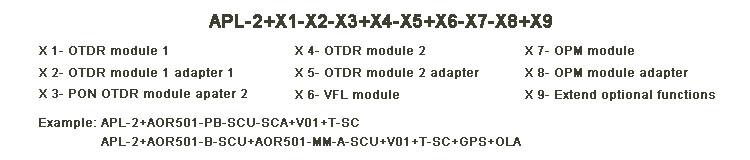

    Model Number : APL-2+ AOR501-PB
    Certification : CE/ROSH/IOS9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    TriBrer OTDR Testing Machine 1310 1550 1625nm SM MM PON OTDR

    TriBrer High Quality 1310 1550 1625nm SM MM PON OTDR
    TriBrer OTDR Testing Machine 1310 1550 1625nm SM MM PON OTDR
    TriBrer OTDR Testing Machine 1310 1550 1625nm SM MM PON OTDR
    TriBrer OTDR Testing Machine 1310 1550 1625nm SM MM PON OTDR
    Features:
    * 7 inch color LCD, Multi-touch screen
    * Multi-wavelength testing and display
    * Built-in VFL and real-time monitoring OPM
    * Map Link with Pass/Not Pass Set
    * Injection/receiving fiber settings
    * Max. 5 wavelengths, 850nm/1300nm/1310nm/1550nm/1625nm
    TriBrer OTDR Testing Machine 1310 1550 1625nm SM MM PON OTDR
    Extendable optional functions:
    Function codeFunction description
    GPSDisplay the longitude and latitude position outdoor
    VIPDisplay the surface of connector by video inspection probe
    OLAMultipulse test using a mix of short, medium and long pulses
    TATriaxial accelerometer
    THHygrothermograph
    WFWIFI
    BTBluetooth

    General Specifications
    Size(H*W*D)246.5mm*173.5mm*70mm
    WeightAbout 1.55 kg
    Storage Temperature-20 -- +60 ℃, < 90%RH
    Operating Temperature-10 -- +50 ℃, < 90%RH

    Specifications
    LCD7 inch color LCD, Multi-touch screen
    ConnectorFC/PC (850/1300/1310/1550), FC/APC (1625) interchangeable adapter or customize
    Pulse Width5ns,10ns,25ns,50ns,100ns,250ns,500ns,1us,2.5us,5us,10us,20us
    Attenuation Dead Zone4.0m
    Event Dead Zone1.5m
    Min.Distance Resolution0.1m
    Loss Resolution(dB)0.001
    Distance Uncertainty(m)±(0.8+0.005% * Testing Distance + Resolution)
    OPM FunctionT:+8~-70dBm or C:+26~-50dBm, 850/1300/1310/1490/1550/1625nm,FC or SC adapter
    VFL Function1mW
    Storage>10000 results
    Battery7.4V/4.6AH Rechargeable lithium-ion batteries

    OTDR Module

    SM OTDR Module 1310nm/1550nm
    AOR501-B
    32/30dB
    AOR501-C
    36/34dB
    AOR501-D
    40/38dB
    Customize
    Customize
    PON Online OTDR 1310nm/1550nm/1625nm
    AOR501-PB
    36dB/34dB/34dB
    Customize
    Customize
    MM OTDR Module 850nm/1300nm
    AOR501-MM-A
    22dB/24dB
    Customize
    Customize

    Packaging & Delivery:
    1,Packaging DetailsHost*1
    2,Carry Bag*1
    3,Calibration Certificate*1
    4,Instruction CD*1
    5,AC/DC Adapter*1
    6,Clean Stick*1bagPortZhejiang
