THE HANDHELD OTDR... REINVENTED
The MAX-700B/C Series is the first tablet-inspired OTDR line that
is handy, lightweight and rugged enough for any outside plant
environment. With a 7-inch, outdoor-enhanced touchscreen–the most
efficient handheld display in the industry–it delivers an
unprecedented user experience. Its intuitive Windows-like GUI
ensures a fast learning curve. Plus, its new and improved OTDR 2
environment offers icon-based functions, instant boot-up, automatic
macrobend finders as well as improved auto and real-time
modes.
The Max-700B/C Series is a line of genuine high-performance OTDRs
from the world's leading manufacturer. It delivers EXFO's tried and
true OTDR quality and accuracy along with the best optical
performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a technician down,
and the plug-and-play hardware options, like the VFL, power meter
and USB tools, make every technician's job easier.
Most importantly, the Max-700B/C Series is finally bringing the
iOLM, an intelligent OTDR-based application, to the handheld
market. This advanced software turns even the most complex trace
analysis into a simple, one-touch task.
Ultimately, the Max-700B/C Series is small enough to fit in your
hand and big enough to fit all your needs!
THE ENTRY-LEVEL SOLUTION DESIGNED FOR ALL YOUR TESTING NEEDS.

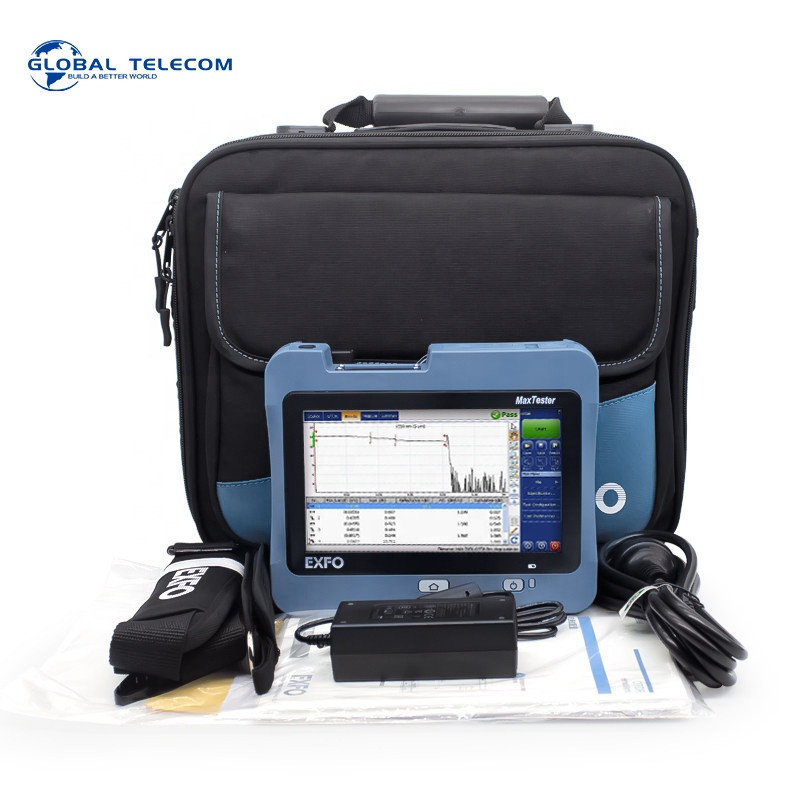

The MAX-715B OTDR/iOLM is optimized for the point-to-point testing
and troubleshooting of FTTx architectures, and is ideal for testing
short fibers (e.g., inside a CO environment or at FTTA/DAS network
installations).
Other models available:
› MAX-720C LAN/WAN Access OTDR-optimized for multimode and
singlemode access network installation and maintenance.
› MAX-730C PON/Metro OTDR-optimized for FTTx/MDU and short metro fi
ber deployments and troubleshooting.
Festures:
1,Handy, lightweight, powerful, tablet-inspired design
2,7-inch, outdoor-enhanced touchscreen–the biggest in the
3,handheld industry
4,12-hour autonomy
5,Dead zones: EDZ 1 m, ADZ 4 m
6,Dynamic range of 30/28/28 dB
7,Rugged design built for outside plant
8,IOLM-ready: intelligent and dynamic application that turns
9,complex OTDR trace analysis into a one-touch task
Applications:
FTTx last-mile installation and troubleshooting
Short access-network testing
FTTA fi ber-DAS installations
CATV/HFC network testing
