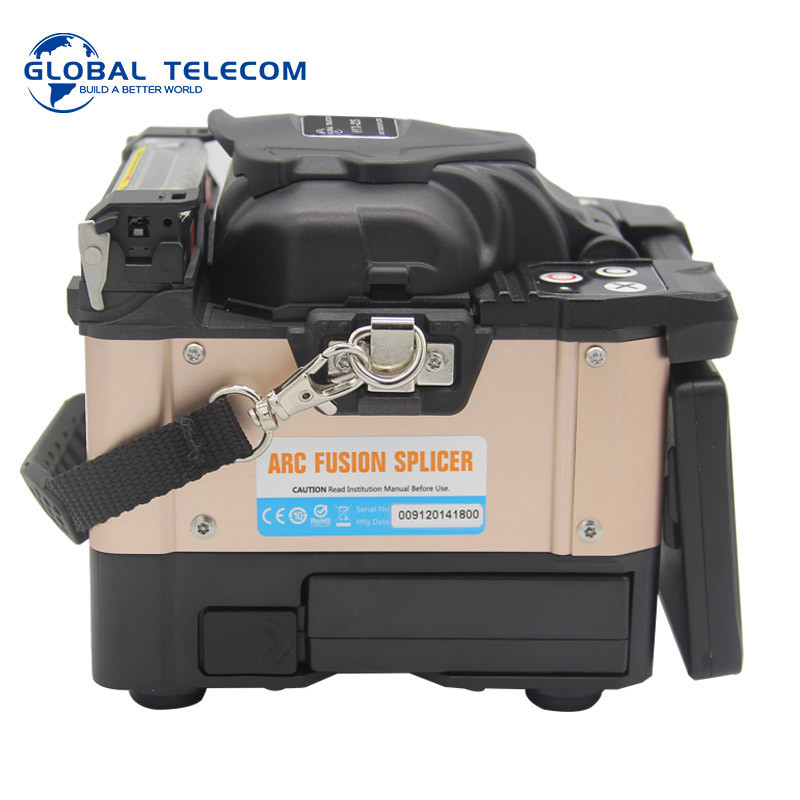

HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor

Hot sales HYX-22S tumtec core alignment chinese manufacturer touch screen 6 mortor fusion splicer price

HYX-22S mainly suitable for FTTH construction,high quality and low loss;precise alignment clad alignment , portable size, ruggedized housing, can used in harsh environment.

Features:
•Industrial quad core CPU, high quality and low loss.
•4.3'' high ewsolution color LCD touch screen, 400X magnification, visible clearly with bare eyes
•3 high-power white LEDs and illuminated keypads simplifies your work at night.
•Detachable multifunction fixture, suitable for various fiber type.

HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor

Model	HYX-22S
Dimension	120Wx140Lx130H
Weight	1.5KG (with battery)
Applicable Fibers	SM(ITU-T G.652&G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25-3.0mm/Indoor Cable
Cleaved Lenghth	Diameter:0.125-1mm/Cleave length:8-16mm
Cladding Diameter	80-15-μm
Splicing Mode	Pre-set 41 splicing modes,max 100 modes
Heating Mode	Pre-set 5 heating modes (20/3040/50/60mm),max 100 modes
Typical Splice Loss	SM:0.03dB/MM:0.02dB/DS:0.05dB/NZDS:0.05dB/G.657:0.03dB(ITU-T Standard)
Return Loss	≥60dB
Splicing time	Qucik mode:6S
Estimated Splice Loss	Available
Heating Sleeve Length	20-60mm
Tension Test	1.96-2.25N
Storage Condition	0~95% relative humidity,-40~80℃
Display	90°bi-directional view,5.0"Color High Resolution Display
Power Supply	AC Input 100-240V,DC Input 12-15V
No.of splice/heating with Battery	5200mAh Bettery Capacity,Typical 250 times (Splice+Heat)
Operating Methods	Button/Touch Screen
