HUAWEI hg8310m hg8010H mini size 1GE GPON ONU FTTH for MA5680T/MA5683T/MA5608T olt with english firmware

EchoLife ONT series products are the home-side devices of Huawei's FTTH solution, and realize ultra-broadband access for home or SOHO users through xPON technology. Provide POTS voice interface and FE/GE adaptive Ethernet interface. The key features of the product are plug and play, remote diagnosis, link monitoring and green energy saving.

• Characteristics:
• Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
• Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
• Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
• High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
• IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.

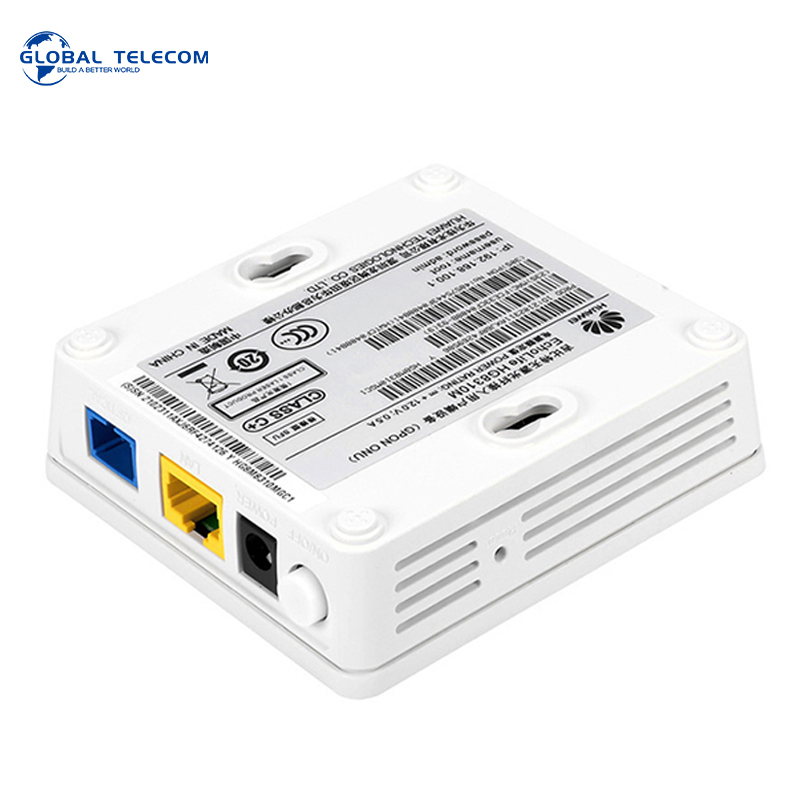

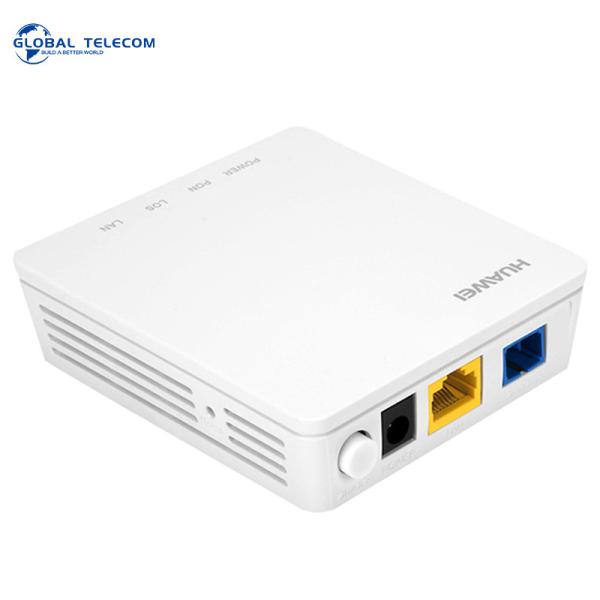

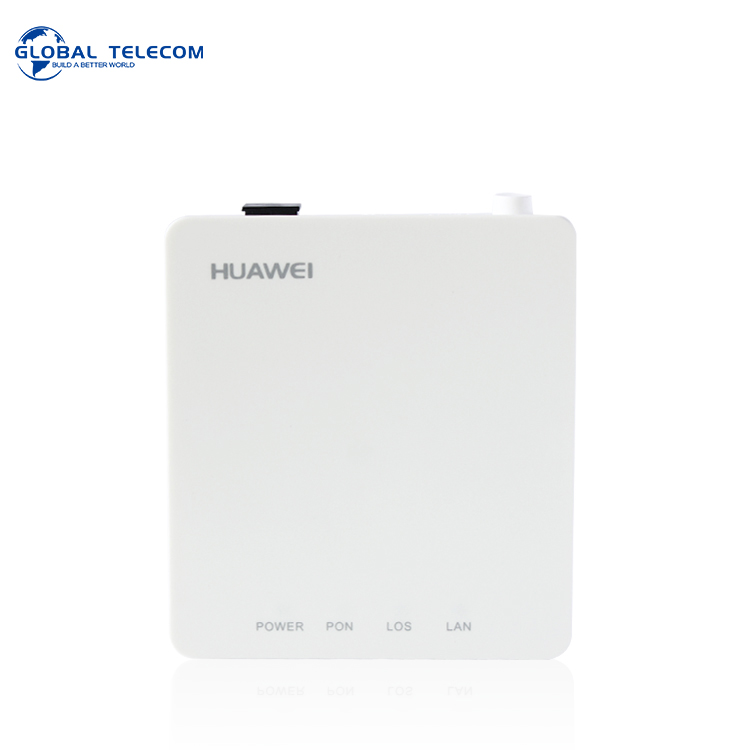

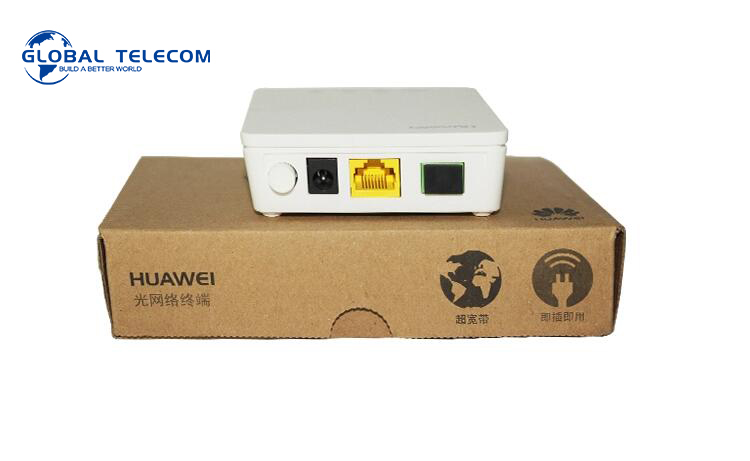

• Huawei EchoLife HG8310M
  Model	HG8310M
  Out Port Contains	1GE
  Quality	100% New
  USB	USB2.0
  Firmware	English
  Weight	<450g
  Wavelength	Tx 1310nm, Rx 1490nm
  Fiber Interface	SC/FC-UPC/APC Dual mode/Singal mode
  RX sensitivity	>-28dBm(1490nm)
  Machine Power	12V 1.0A
  Button	Power
  Working temperature	0°C~+40°C
  working humidity	5%-95%(non-condensation)

Shenzhen Huayixin Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. Huayixin win the honorary title of National High-tech enterprise by Shenzhen government in 2019.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3600 square meters and more than 26 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 6 production lines for fiber optic cable, 3 high standard MPO/MTP jumper assembly lines, 6 production lines for standard jumper and 8 PLC Splitter production lines.3 production lines for fast connectors.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and EXFO ,VIAVI OTDR ,JGR and so on.

All of our optical products are RoHS compliant and Huayixin also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Carefiber exports its fiber optical products to overseas market such as to France, Germany, England, America, Mexico,Brazil ,South Africa ,Ecuador ,Peru etc. Huayixin fiber optic is looking forward to cooperate with you.
