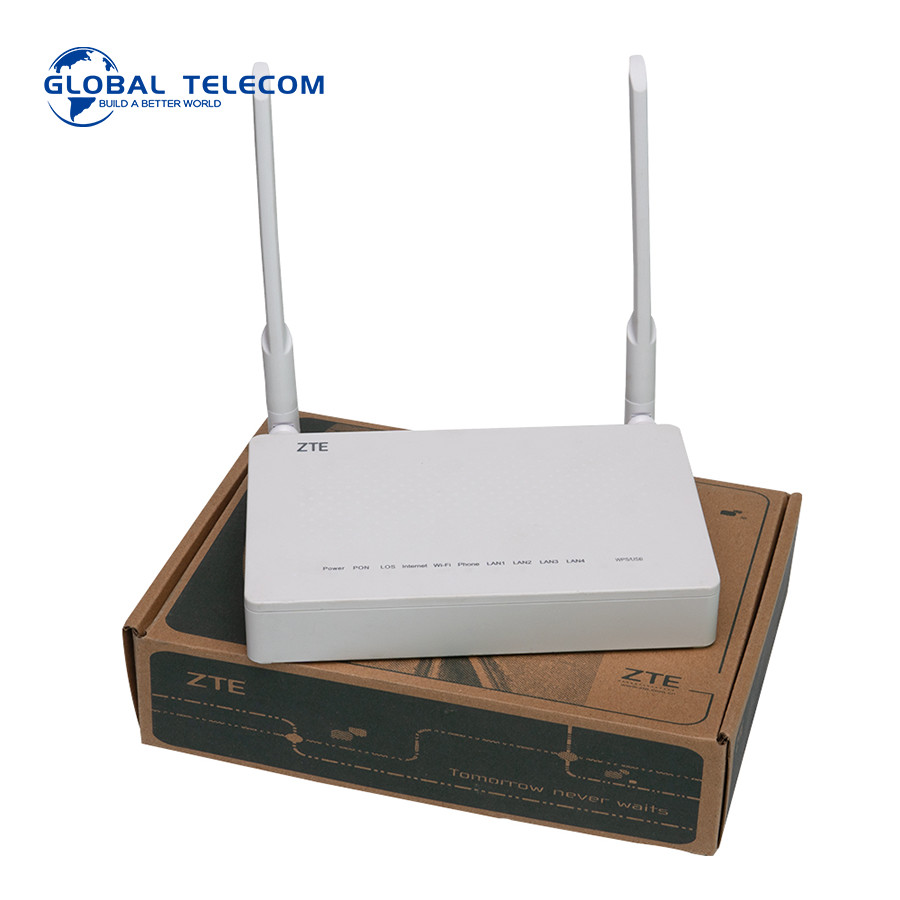

ZTE F660 V8.0 1GE+3FE+Wifi gpon ont
fiber optic network modem wifi gpon onu
Catering for different scenarios it provides different interfaces
such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the
requirements of FTTH,FTTO and FTTB application modes, not only for
home user, but also for commercial users.It supports full service
operation with high QoS and security, such as HSI, VoIP, IPTV.
Product Description:

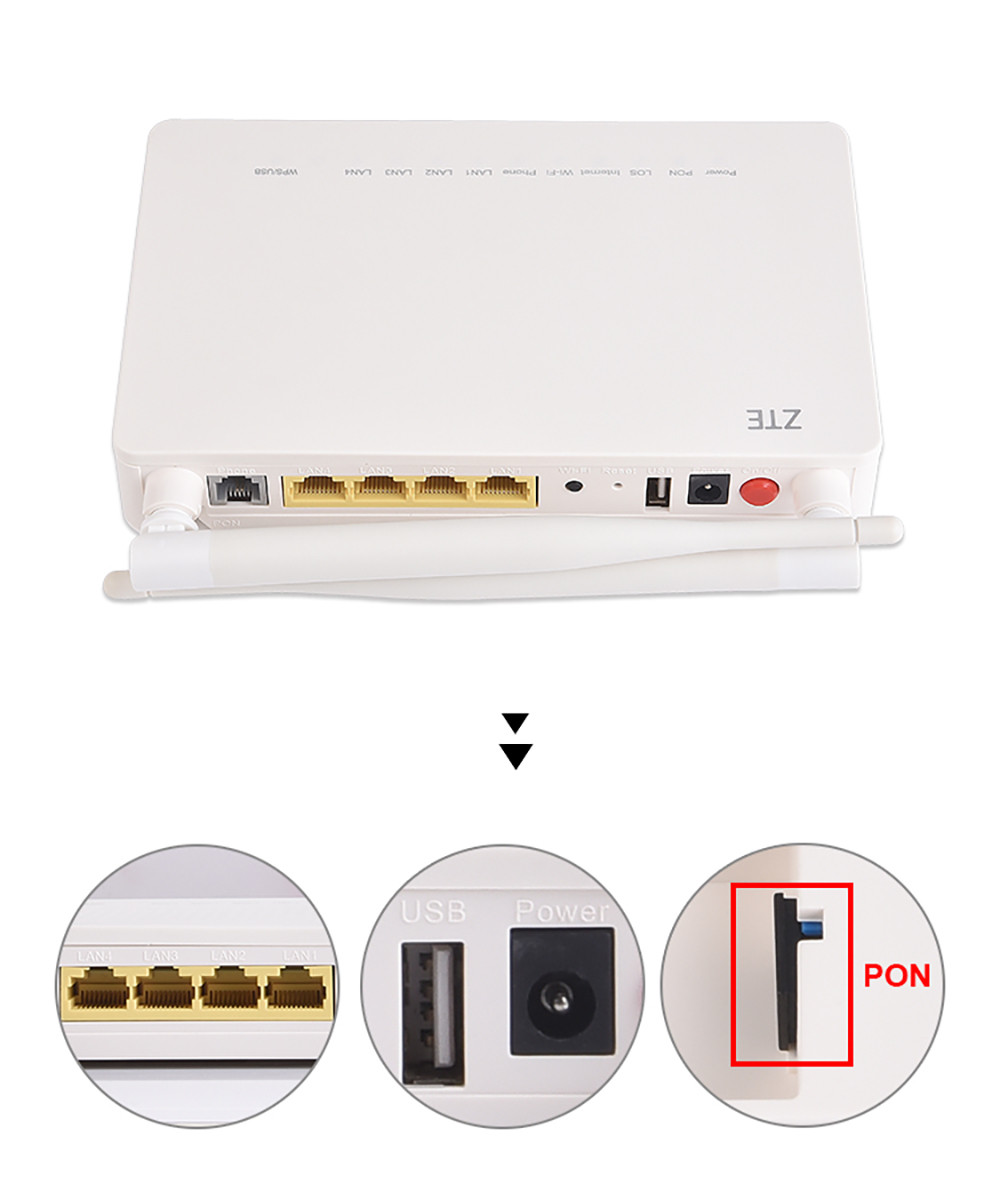

* Fiber access:Connecting internet throungh GPON access method
* Ethernet fuction: It Provids 4 Ethernet ports and Ethernet
devices can be directly connected to the ZXHN F660 Ethernet port to
achieve Internet and IPTV services.
* VoIP function: It Provids 1 VoIP(Phone) ports supporting
softswitch SIP, IMS SIP or H.248 voice control protocol and
telephone can be connected via this interface.
* Internal WLAM fuction: Users can connect to the ZXHNF627 via
WLAN, enabling wireless Internet access.
* Data sharing, fast backup, data recovery and other functions: It
provides USB2.0 port.Pluging a USB memory device,it can achieve all
these fuctions.
* Under the premise of providing the above functions ,achieving
security, QoS and network management are also took into the
consideration.
* Providing multi-level authentication based on device, user,
service, and encryption of data channels
* For different service requirements of the business,it can
complete the local equipment and network matching QoS requirements
* Holding network management based on multiple management methods
Executive Standard:
* GPON interface: SC/UPC or SC/APC PON interface,GPON standard
* Ethernet interface: 1*10Mbps/100Mbps/1000Mbps adaptive
port+3*10Mbps/100Mbps adaptive port,RJ-45 type,IEEE802.3 and
IEEE802.3u standard
* Phone interface: RJ-11 type
* WLAN interface: IEE802.11b,IEEE802.11g,IEEE802.11n
standard,built-in antenna
* USB interface:standardized USB2.0
Applications:
* Catering for different scenarios it provides different interfaces
such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the
requirements of FTTH,FTTO and FTTB application modes, not only for
home user, but also for commercial users.It supports full service
operation with high QoS and security, such as HSI, VoIP, IPTV.
* Easy for deployment Mounting mode and fiber coiling make
installation very easy.
* Easy for trouble shooting Support ONT signal tracing and
performance monitoring, and quickly locate fault on ONT.
* Particular power saving Supports status monitoring when ONT is
free, and enter low-power
