Product Description
ZTE gpon ont F601 GPON ONT series equipments are manufactured and
developed by Huawei company, which is a leader in FTTH/ FTTO
broadband access network field. They are properly manageable added
with features such as high-bandwidth, high reliability, low power
consumption and satisfy the users requirement to access broadband,
voice, data and video etc.

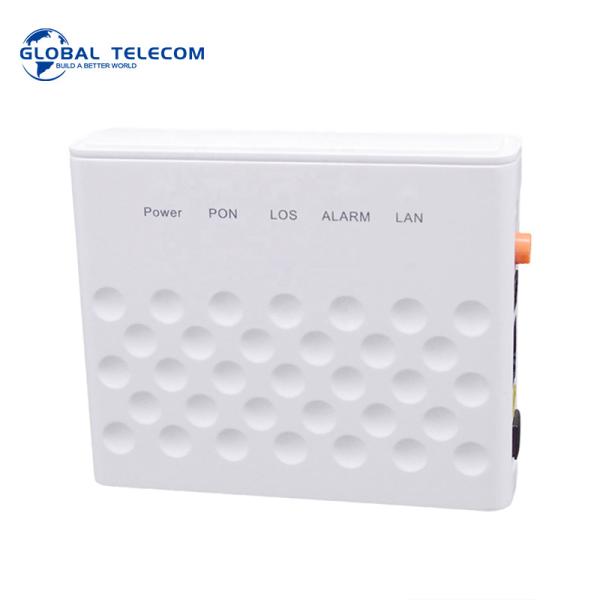

ZTE GPON ONU F601 with 1GE ports,an optical network terminal (ONT),
is a high-end home gateway in FTTH solution. By using the GPON
technology, ultra-broadband access is provided for home and SOHO
users.
The F601 features high-performance forwarding capabilities to
ensure excellent experience with VoIP, Internet and HD video
services. Therefore, the F601 provides a perfect terminal solution
and future-oriented service supporting capabilities for FTTH
deployment.
The F601 Provide English firmware and EU, US, UK, AU Power adapter
for your choice.
Product Features
GPON Interface: 1 *GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244bps upstream
LAN: 1GE with RJ-45 connector

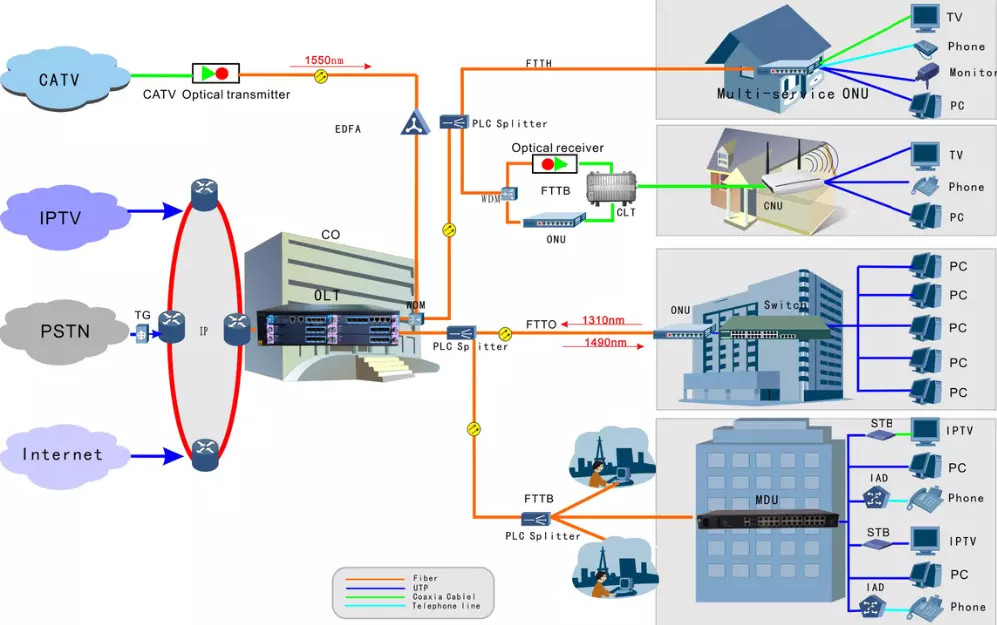

Application and Advantage:
ZXHN F601 is a GPON Optical Network Terminal designed for FTTH. It
provides high-performance forwarding capabilities to ensure
excellent experience with Internet and HD video services. It has a
small, smart appearance and green, energy-saving advantage.
Model | Configuration | Dimension/pcs |
LAN | Telephone | Wifi | PPPOE | Firmware |
F601(v6.0) | 1GE | no | no | no | English | 196*138*74mm/0.3kgs |
GPON Interface | Optical port: 1 x GPON interface (SC/PC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream |
User Network Interface | 1 x10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation |
Optical Module | Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm |
Main Function | Supported service: Internet, IPTV
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 256
Multicast: IGMP v1/v2/v3 Snooping
Multicast group: 256
QoS: service flow classification based on physical port, Ethernet
type; ingress rate limit;egress shaping
Management: local web management, OMCI |
Physical Performance | Power consumption: <3W
Working temperature: 0℃ ~ 40℃
Working humidity: 5% ~ 95%
Power supply: 12V DC
Mounting mode: Desktop/Wall mounting
The setup interface is in English language. |
