OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable

    Buy cheap OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable from wholesalers

    Buy cheap OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable from wholesalers
    • Buy cheap OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable from wholesalers
    • Buy cheap OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable from wholesalers

    OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable

    Ask Lasest Price
    Brand Name : Huayixin and OEM
    Model Number : GYTA53
    Certification : CE/Rosh/ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram
    Supply Ability : 50000KM Per month
    Delivery Time : 5-8 working days after payment
    MOQ : 3KM
    • Product Details
    • Company Profile

    OEM GYTA53 Outdoor Fiber Optic Cable , Double Steel Aluminium Armored Fiber Cable

    Factory Double Steel Aluminium Armored Underground Fiber Optic Cable 24 48 96 144 Cores Optical Fiber Cable GYTA53

    In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the core.

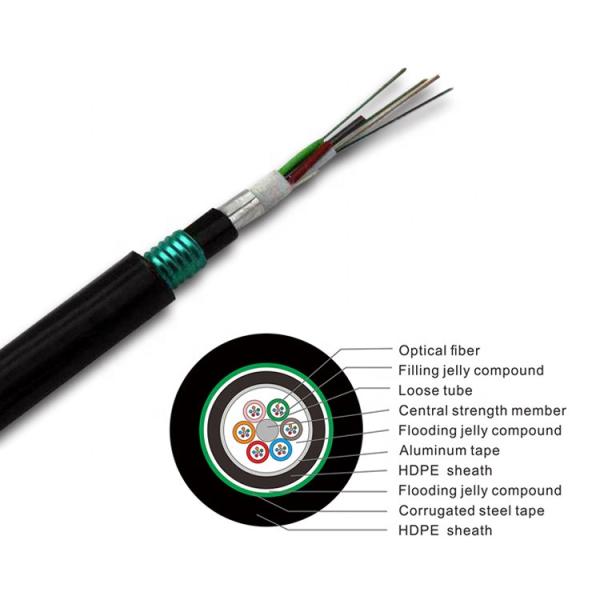

    Cable structure

    The optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes and fillers are stranded around the central strength member to form a cable core.The cable core is armored with aluminum tape,then an inner PE sheath is extruded.The inner sheath is armored with corrugated steel tape,finally an outer PE sheath is extruded.
    Fiber core number and fiber type:

    The number of fiber cores can be selected from 2 to 288. There are the following optical fiber options:

    1,Single mode optical fiber G.652.D(or G.652.B) ,G.655;

    2,Multi mode optical fiber 50/125μm or 62.5/125μm,OM1 OM2 OM3 OM4 optional.

    You can choose to use hybrid fiber according to the actual situation, such as the hybrid use of G.652.D

    and G.655 fiber.

    Parameters of single mode fiber :
    Items
    Description
    G.652.D
    G.655
    Attenuation (dB/km)
    (After cable)
    1310nm
    ≤0.36
    ≤0.40
    1550nm
    ≤0.22
    ≤0.25
    Cable cut-off wavelength (mm)
    ≤1260
    ≤1450
    Zero-dispersion wavelength (mm)
    1300～1324
    ≤1520
    Zero-dispersion slope([ps/(nm2·km)])
    ≤0.092
    ---
    Dispersion slope(1550nm) ([ps/(nm2·km)])
    ---
    ≤0.0084
    1310nm Mode field diameter (μm)
    8.7~9.5
    ---
    1550nm Mode field diameter (μm)
    9.8~10.8
    9.1~10.1
    Core/Clad concentricity error (μm)
    ≤0.6
    ≤0.6
    Cladding diameter ( μm)
    125±0.7
    125±0.7
    Cladding non-circularity (%)
    ≤1.0
    ≤1.0
    Primary Coating diameter ( μm)
    (Before be colored)
    235～250
    235～250
    Proof test level (kpsi)
    ≥100
    ≥100
    Atttenuation with bending loss(dB)
    @1550nm,25 mm radius, 100 turns
    ≤0.05
    ≤0.05
    @1550nm,16 mm radius, 1 turn
    ≤0.05
    ≤0.05
    Attenuation and bandwidth of multi mode Optical fiber:
    Fiber type
    850/1300nm
    Attenuation(20℃)
    (After cable)
    Overfilled Modal Bandwidth
    Effective Modal Bandwidth
    Application support distance on
    (at 850nm)
    Typical value
    Max value
    850/1300nm
    850nm
    40GBASE-SR4 / 100GBASE-SR101
    10GBASE-SR
    1000BASE-SR
    unit
    dB/Km
    dB/Km
    MHz．Km
    MHz．Km
    m
    m
    m
    50/125
    3.0/1.0
    3.3/1.2
    ≥500/500
    ---
    ---
    ---
    ---
    62.5/125
    3.0/1.0
    3.3/1.2
    ≥200/500
    ---
    ---
    ---
    ---
    OM2+
    3.0/1.0
    3.3/1.2
    ≥700/500
    ≥950
    ---
    140
    170
    OM3
    3.0/1.0
    3.3/1.2
    ≥1500/500
    ≥2000
    150
    300
    550
    OM4
    3.0/1.0
    3.3/1.2
    ≥3500/500
    ≥4700
    750
    1000
    1100
    Fibre and Tube Colour Code :
