    PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam

    Ask Lasest Price
    Brand Name : Huayixin or OEM
    Model Number : ADSS
    Certification : CE/Rosh/ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000KM Per month
    Delivery Time : 5-8 working days after payment
    • Product Details
    • Company Profile

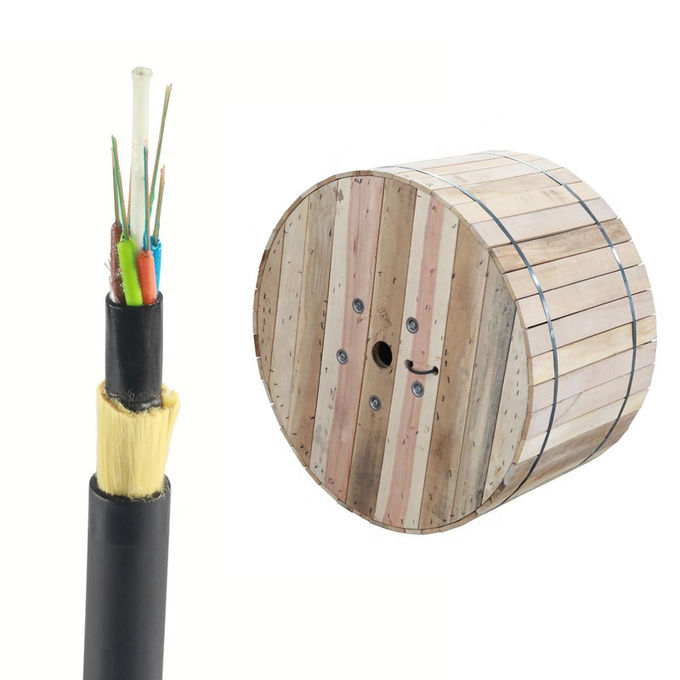

    PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam

    ADSS fiber optic cable 12 core 24 core 48 core 96 core 144 core 50M Spam 100 Spam ADSS optic fiber cable

    Features
    Can be installed without shutting offthe power.
    ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
    Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
    Large span lengths and the largest span is over 200m.
    Good performance oftensile strength and temperature.
    The design life span is over 30 years.

    Product Parameters
    Temperature Range
    Transport/storage temp
    -30℃~+65℃
    Installation temp
    -20℃~+50℃
    Operation temp
    -30℃~+65℃
    Structural Characteristics
    Fiber count
    2~144
    Loose tube
    Colored fiber in PBT loose tube,filled with fiber gel
    Central strength member
    Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
    Waterproof layer
    Cable core filled with cable gel or water blocking tape, water blocking yarns
    High-strength aramid yarn
    Offers very high tensile strength, small diameter and light weight to fit different climate conditions and laying spans
    Sheath
    Anti-tracking(AT) material or Polyethylene(PE)

    Cable Performance Parameter
    Span meter200300400
    Related Strength Tension(RTS)17.5 kn20.6 kn28 kn
    Max Allowable Tension(MAT)6.9 kn8.2 kn11.5 kn
    Allowable Crush ResistanceLong Term: 1100 n/100mmLong Term: 1100 n/100mmLong Term: 1100 n/100mm
    Short Term: 2200 n/100mmShort Term: 2200 n/100mmShort Term: 2200 n/100mm
    Minimum Bending RadiusOperating: 220 mmOperating: 220 mmOperating: 220 mm
    Installlation: 360 mmInstalllation: 360 mmInstalllation: 360 mm
    Temperature RangeOperating: -40 /+70℃Operating: -40 /+70℃Operating: -40 / +70℃
    Installlation: -15 / +60℃Installlation: -15 / +60℃Installlation: -15 / +60℃
    Out Sheath MaterialElectrical Resistance AT (Borealis material 6081) Sheath
    Noteice accretion 5MM,weed speed:30M/S
    PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 SpamPE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam
    Aramid ,Non-metal FRP Strenghth
    1. High quality Import Aramid Yarn
    2.Center FRP Strength,Anti-electromagnetic interference
    3.Span 100M 120m 140M 160M to 1000M
    Fiber Core
    1.The fiber optic cable adopts the well-known brand A-class core, which has high transmission rate, long distance and small
    attenuation.
    2. Single Mode/Muli Mode Options
    3. 12 different Colors Option, can do as your request
