    G655 Opgw Fiber Optic Cable , G652D Optical Fiber Composite Overhead Ground Wire

    Ask Lasest Price
    Brand Name : Huayixin or OEM
    Model Number : OPGW fiber cable
    Certification : CE/Rosh/ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000KM per month
    Delivery Time : 15 workigng days
    • Product Details
    • Company Profile

    G655 Opgw Fiber Optic Cable , G652D Optical Fiber Composite Overhead Ground Wire

    OPGW fiber cable G652D G655 Self-Supporting Aerial Composite Overhead Ground Wire OPGW Optical Fibre Cable


    Description

    OPGW is a overhead ground cable with built-in fibers, owing mutual functions of overhead ground cable and optical communication. It’s mainly applied to communication lines which cross 110kV, 22kV, 500kV, 750kV and new built aerial high voltage power transmission system. It also can be used to replace existed ground cable in old aerial high voltage power transmission system, and increasing new optical communication lines, transporting short circuit electricity and protecting it from thunder.

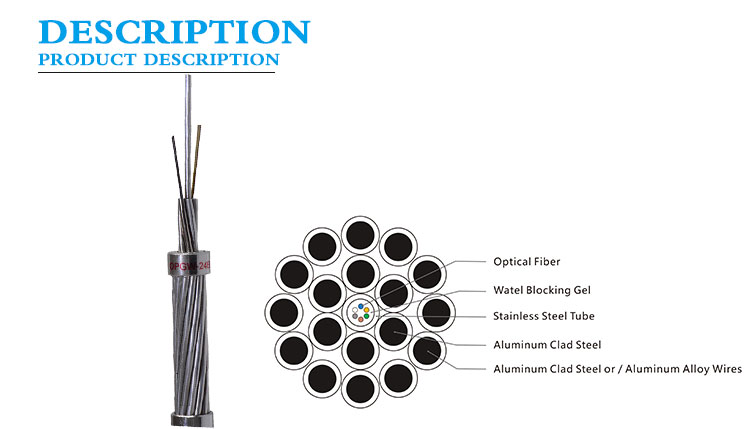

    Product Structure

    Features

    -Relatively large cable diameter, can design large fiber counts

    -Stable constructure, high reliability

    -Good tensile and large short circuit electricity capacity, can reach a best balance between mechanical and electrical performance

    -can match with normal ground wire

    Application

    -High voltage power transmission system

    Installation

    -Aerial

    Specification
    Technical Date
    Comply with IEC, IEEE, DL/T 832-2003, GB/T 7424.4-2003 standards
    stranding direction of outer layer is right hand(Z-stranding)
    CableDiameter15.50 mm
    CableWeight475 kg/km
    SupportingCross Section135.9 mm2
    Section of AS Wire22.64 mm2
    Section of AA Wire113.22 mm 2
    Rate Tensile Strength (RTS)60.7 kN
    Modulus of Elasticity (E-Modulus)81.2 kN/mm2
    Thermal ElongationCoefficient19.7x215;10-6 /℃
    Permissible Maximum Working Stress (40% RTS)178.7 N/m m2
    EverydayStress(EDS) (18%~25% RTS)80.4 ~111.7 N/mm 2
    Ultimate Exceptional Stress (70% RTS)312.8 N/mm 2
    DC Resistance0.272 /km
    Short Time Current (0.25s,40℃~200℃)25.1 kA
    Short Time Current Capacity I2t158.1 kA2S
    Minimum Bending RadInstallation310 mm
    Oprating232 mm
    Ratio between Pull and Weight13.0 km
    Installation Temperature-10 ℃~ +50 ℃
    Transportationand Operation Temperature

    -40 ℃ ~ +80 ℃
