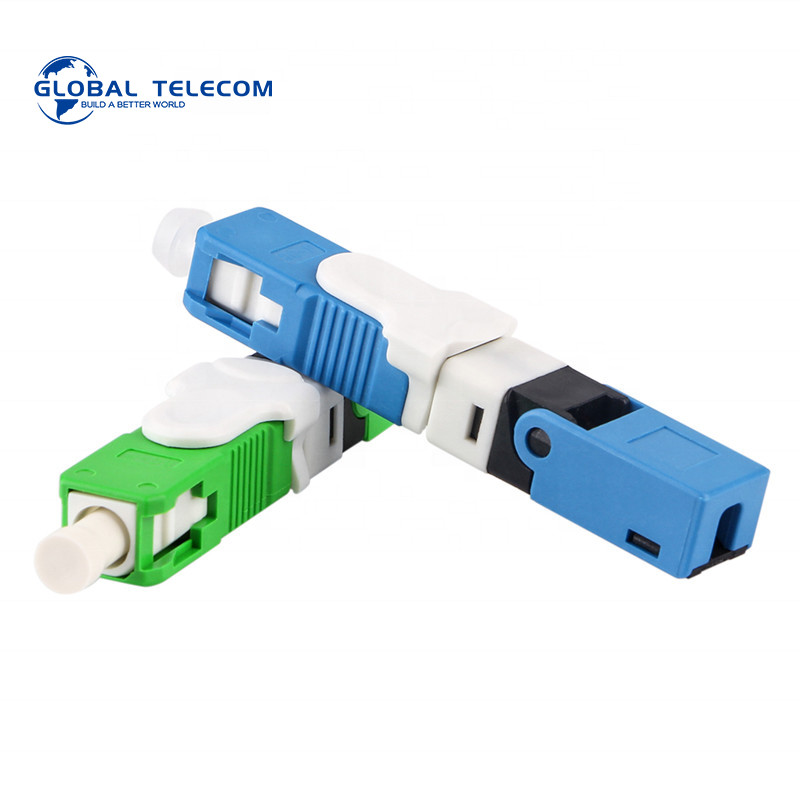

SC UPC Field Assembly Fiber Optic Fast Connector

SC fast connector allow you to terminate a fiber in short time. The fast connect is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted into the connector body. The fast connect is available in both single mode and multimode (OM1 and OM3 10Gig)and a variety of connector types and can be terminated onto 250um and 900um coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.

* Field-installable
* Fast and easy to terminate
* Excellent insertion and RL performance
* Reusable
* No termination enclosure required.
* Handles and performs like a factory terminated connector
* Twin end-face of pre embedded fiber is polished in the factory
* Fiber optics is aligned in V-groove through the ceramic frrule

Fiber Diameter	125μm (G652 & G657A1, G657A2)
Coating Diameter	250μm
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
Return Loss	≥50dB for UPC, ≥55dB for APC
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Coating	>10 N
Tensile Strength	>5 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.5dB
Mechanical Durability(500 times)	IL ≤ 0.5dB
Drop Test (4m concrete floor, once each direction, three times total)	IL ≤ 0.5dB

Shenzhen Huayixin Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. Huayixin win the honorary title of National High-tech enterprise by Shenzhen government in 2019.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3600 square meters and more than 26 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 6 production lines for fiber optic cable, 3 high standard MPO/MTP jumper assembly lines, 6 production lines for standard jumper and 8 PLC Splitter production lines.3 production lines for fast connectors.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and EXFO ,VIAVI OTDR ,JGR and so on.

All of our optical products are RoHS compliant and Huayixin also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Carefiber exports its fiber optical products to overseas market such as to France, Germany, England, America, Mexico,Brazil ,South Africa ,Ecuador ,Peru etc. Huayixin fiber optic is looking forward to cooperate with you.
