ISO9001 Ftth Fast Connector , Sc Apc Quick Connector 20N Tension

Product Categories

Shenzhen Huayixin Technology Co., Ltd.

Contact Now

ISO9001 Ftth Fast Connector , Sc Apc Quick Connector 20N Tension

Ask Lasest Price
Brand Name :	Global Telecom
Model Number :	GT-007
Certification :	CE/ROSH/IOS9001
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500sets
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

ISO9001 Ftth Fast Connector , Sc Apc Quick Connector 20N Tension

ftth high quality fast connector factory direct sc apc fast connector lowest price with apc fast connector

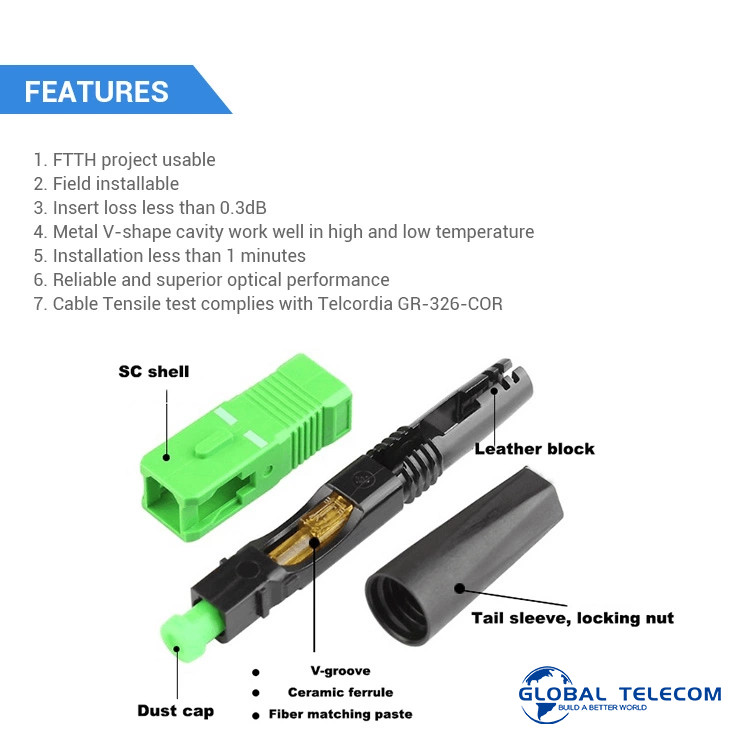

The fast connector is embedded optical fiber, to ensure a controlled factory ceramic polishing face, the radius of curvature, apex offset, optical fiber end surface polishing projection height and the ceramic mass.The use of high concentricity of the ceramic ferrule embedded fiber ensures a low insertion loss and high return loss optical performance accuracy of the V-groove to be cut on site slide locking mechanism fixed to the fibers have the V-groove of the fiber core center the combination of precise fiber core with matching refractive index matching cream can guarantee quick connectors with high stability and high performance bare fiber, coating, pigtails, skin quadruple cable clamp, special assembly fixtures to meet the requirements, the operator simple and quick.

ISO9001 Ftth Fast Connector , Sc Apc Quick Connector 20N Tension

Type	fast connector
No. of Fiber	1.
Certification	CE RoHS FCC
Insertion loss	≤0.3dB
Connector Type	SC UPC / SC APC optional
Fiber Type	SM/MM/OM3
Application	FTTH FTTB FTTX Network, Indoor and outdoor
Return loss	≥60dB
