| Brand Name : | Fujikura |
| Model Number : | CT-50 |
| Certification : | CE/Rosh/ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000 pcs per month |
| Delivery Time : | 5-8 working days after payment |

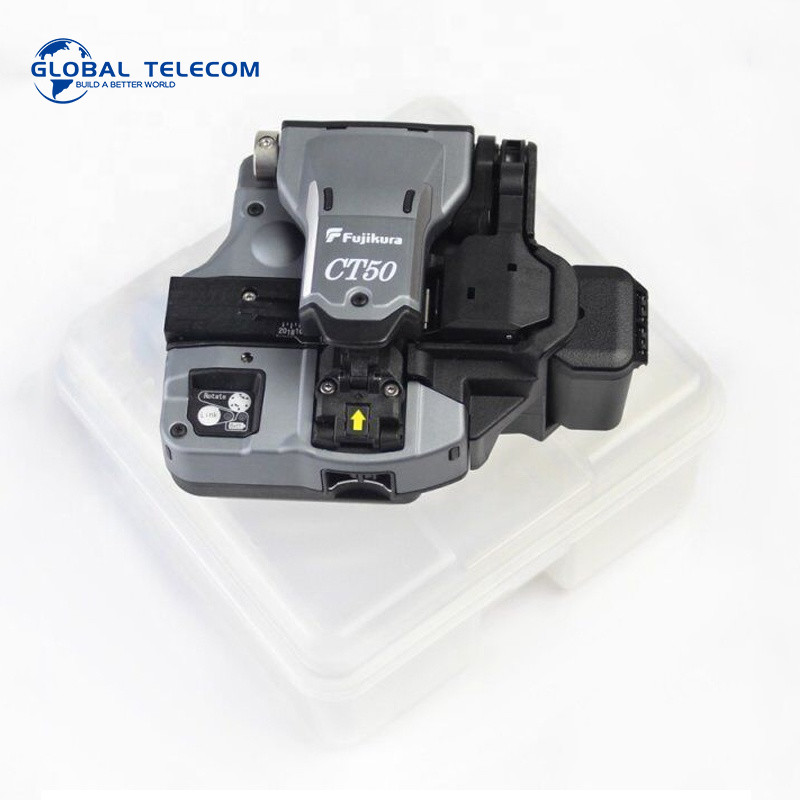

original japan fujikura optical fiber cleaver tool ct 30 fiber cleaver CT 50 for ftth fiber cutting
The CT50 offers enhanced drop impact resistance compared to other
existing cleavers and allows workers to replace the cleaving
blade, providing customers with a drastic reduction in handling
time and maintenance costs. The CT50 changes the position of the
cleaving blade automatically and in accordance with the condition
of the cleaving state of optical fibers on a fusion splicer
through wireless communication. In addition,the CT50 can complete
cleaving works including scrap collection, with a single-step.
Parameter | Information |
Product name | Fiber cleaver |
Brand | Japan Fujikura |
Model | CT-50 |
Applicable Fiber | Conventional silica optical fiber |
Fiber Count | Single and up to 12 fiber ribbon |
Coating Diameter | 250 μm to 900 μm |
Cladding Diameter | 125 µm |
Cleave Length | 5-20 mm with AD-50 adapter plate and 10 mm when using fiber holders |
Cleave Angle Capability | Typically <0.5 |
Blade Lifetime | 60,000 fiber cleaves (5,000 12-fiber cleaves) |
Dimensions (W x D x H) | 120 mm x 95 mm x 58 mm |
Weight | 300 g (0.66 lbs) |
|
|
