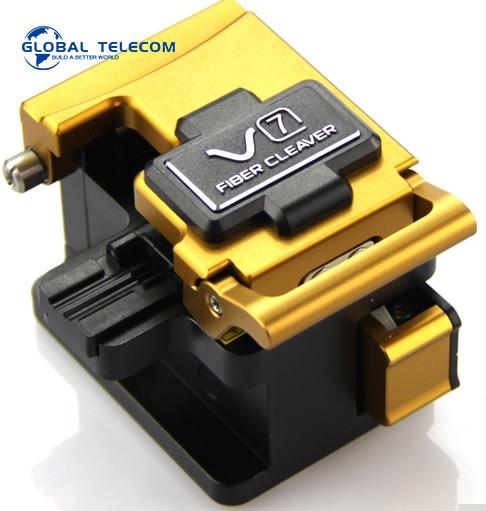

High Precision INNO V7 Fiber Cleaver Universal holder easy operation

Optical Fiber Cleaver INNO V7 Fiber Cable Cutter High Precision

High Precision INNO V7 Fiber Cleaver Universal holder easy operation

V7 High Precision Cleaver is an instrument for high precision fiber cutting.

V7 can be installed with a variety of holders for ribbon cable up to 12 fibers as well as universal holder which is applicable to 250μm, 900μm, 3.0mm fiber and flat cable.

Work efficiency can be maximized with easy and simple 2 step operations.

The blade provides over 48,000 fiber cleaves by easy and simple blade position selection. Helped by unmatched functionalities, users can achieve the most accurate cleaving and ideally prepare their fusion splicing.

High Precision INNO V7 Fiber Cleaver Universal holder easy operation

Features:

01,Real one-step operation to complete cutting ;

02,Convenient operation,right ot left hand in the hand or desktop;

03,Optical fiber placement is simple ,sutomatically reset after cutting,improve work efficiency;

04,Ingenious presser foot design to prevent fiber damage caused by secondary return;

05,The life of the blade is morethan 3000 times on one side,with 16 cutting end faces;

06,Made of magnesium alloy material, high strength, small submission and light weight;

07,Lining elastic sponge pad .

High Precision INNO V7 Fiber Cleaver Universal holder easy operation

Type	Single & ribbon fiber cable cleaver
Cladding Diameter	125μm
Cleaved Length	Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable	Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable
Typical Cleaved Angle	Less than 0.5 Degrees
Typical Blade Life Span	Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)
Operation Steps	2 Steps
Reclaim Function	Blade push back
Holder	Single: Universal holder / Ribbon: Replaceable holder
Dimensions	2.44" x 3.93" x 3.14" (62mm x 100mm x 80mm)
Weight	0.83lbs (379 grams)
