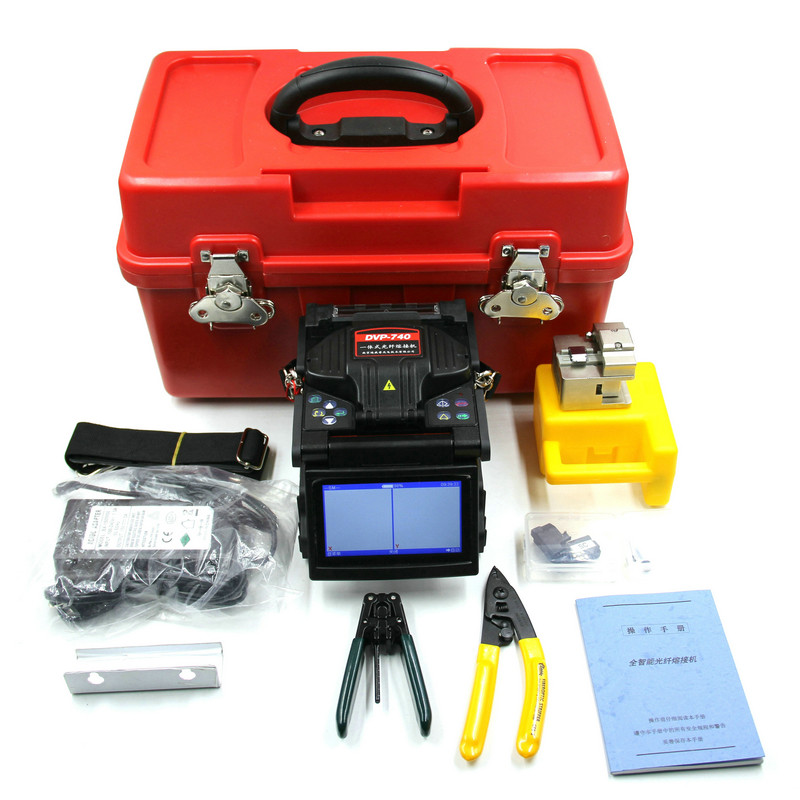

Original DVP-740 Multi-language Fiber Optic Fusion Splicer Machine
DVP is a professional hi-tech Enterprise which is registered as
ISO9001, specializing in designing, manufacturing and selling
optical and electrical equipment and test instruments.
DVP engineers are experts who have many years experience of
development and test. They lay a solid foundation for advanced
technology, prompt and effective after-sales service support. DVP
series fusion splicers are CE, ROHS and Russia national system
approved and developed by DVP, whose intellectual property is also
owned by our company. They have gained praise from the customers
from home and abroad for its hi-tech, reliability, small size,
light-weight, easy-handling.
DVP products are sold to Korea, Malaysia, India, Finland, UK,
Germany, Australia, France and Canada, etc, which are also widely
marketed in Broadcasting & Television network.
DVP-740 is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655),
EDF and other fibers. DVP-740 is capable of ensuring high-quality
splicing even in the most unfavorable environment conditions.
DVP-740 splicers are suitable forcore or cladding alignment. Using
one of these methods the two cleaved fibers are automatically
aligned by the fusion splicer in the x,y plane, then are fused
together.The bare fiber area is protected either by recoating or
with asplice protector. A splice protector is a heat shrinkable
tube with a strength membrane and less loss.
Features :
1. It can applicable fibers such as SM/MM/DS/NZ-DS.
3. Reversible monitor with control panel on each side.
4. Compact & Light weight.
5. SYSTEM TEST ensures the best working condition.
6. Auto check fiber end face.
7. Auto calibrate parameters.
8. Store 8000 groups of splice results, and can connect to computer
9. 8 Kind of Language options: English, Korean, Russian,
Portuguese, French, Spanish, German, Chinese.
10. Large capacity internal battery ( Liion battery 12V 10,000mAh )
| Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657),
Pigtail, Drop cable and connector. |
| Fiber cleaved length | 8-22mm |
| Average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss | ≥60dB |
| Tension test | 2.0N(200gf)(Standard) |
| Protection sleeve length | 20mm, 40mm, 60mm |
| Splice Program | 5 groups of preset programs, 75 group of manual setting |
| Language | English, Chinese, Russian, Spanish, Portuguese. |
| Environment conditions | -25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m
(altitude) |
| Storage environment | -40~ +80℃ (temperature) , 0~95%RH (humidity) |
| Power supply | AC adaptor: 85~260V input voltage
Internal battery: 12V, 6Ah, up to 120 times of continuous splice
and heat |
| Dimensions/Weight | 142(D)×122(W)×138(H)mm/1.95kg |
