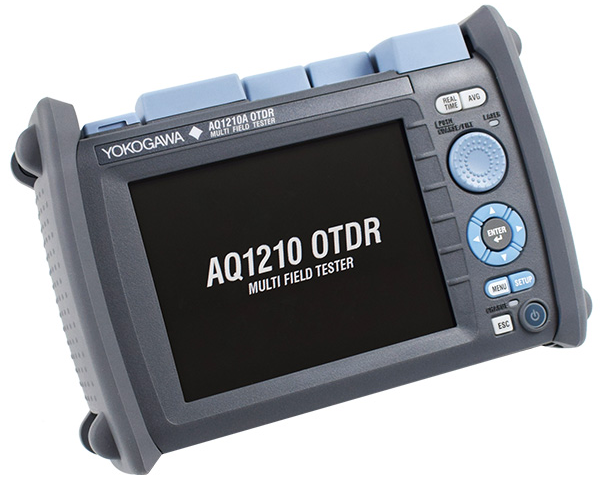

Japan Yokogawa otdr machine
short-time high-speed mode AQ1210 SM / MM / PON fiber optical otdr
Main features of AQ1210 Yokogawa Optical Time Domain Reflectometer
OTDR

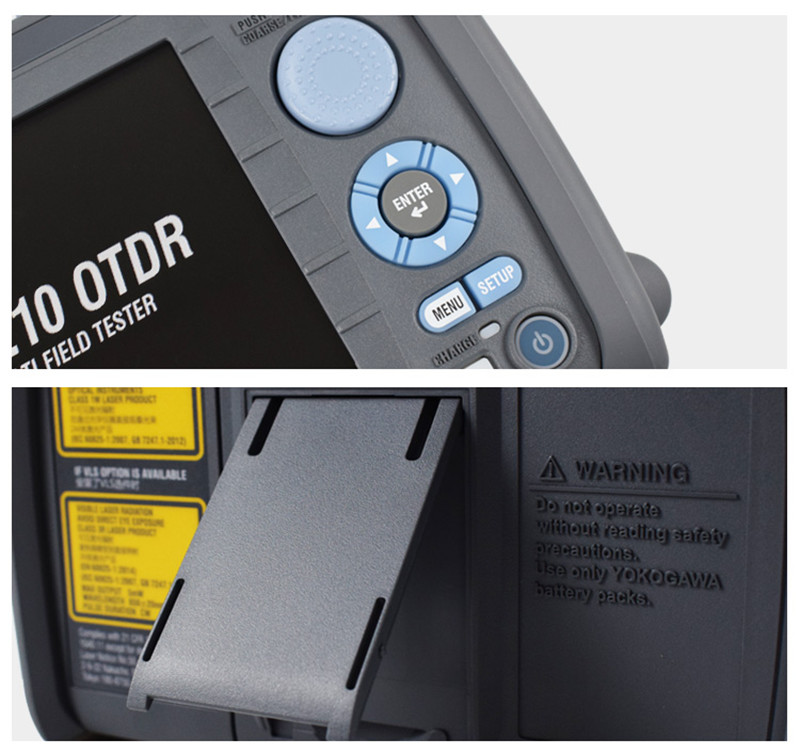

• Dual operation mode: touch screen combined with hard button,
finger tap, slide, zoom or press to operate the instrument screen
• Multitasking: While performing OTDR measurements, you can also
confirm the optical power, fiber ID/bending, etc. of other cores.
• Smart Link Analysis: One-click measurement, complete network
features, easy to read reports
• Powerful battery life: it can be powered continuously for 10
hours under Telcordia standard conditions
• Quick start: only 10 seconds from the full shutdown state to the
measurement preparation
• Multi-fiber measurement: guides the user to track the measurement
of multiple fibers in sequence
• High-speed, high-performance real-time measurement: can be
selected according to the operating environment: short-time
high-speed mode and high-precision mode of waveform
• PDFOTDR view mode: OTDR view can be switched between curves and
graphs by simply clicking the icon
• Reporting: Built-in post-processing software for generating OTDR
reports in PDF format
• Advanced curve analysis: including multi-curve analysis,
bi-directional curve analysis, curve difference analysis, interval
analysis (return loss)
• Remote Control: Remote control via a web browser or Wi-Fi or LAN
control commands via a smartphone or tablet
AQ1210A | 1310/1550 | 37/35DB | 0.6m | 3.5m/4m | AQ1210E | 1310/1550/1625 | 37/35/35DB | 0.6m | 3.5m/4m | AQ1215A | 1310/1550 | 42/40DB | 0.6m | 3.5m/4m | AQ1215E | 1310/1550/1625 | 42/40/39DB | 0.5m | 3.5m/4m | AQ1215F | 1310/1550/1650 | 42/40/37DB | 0.6m | 3.5m/4m/4m | AQ1216F | 1310/1550/1650 | 42/40/40DB | 0.6m | 3.5m/4m/4m |
|
