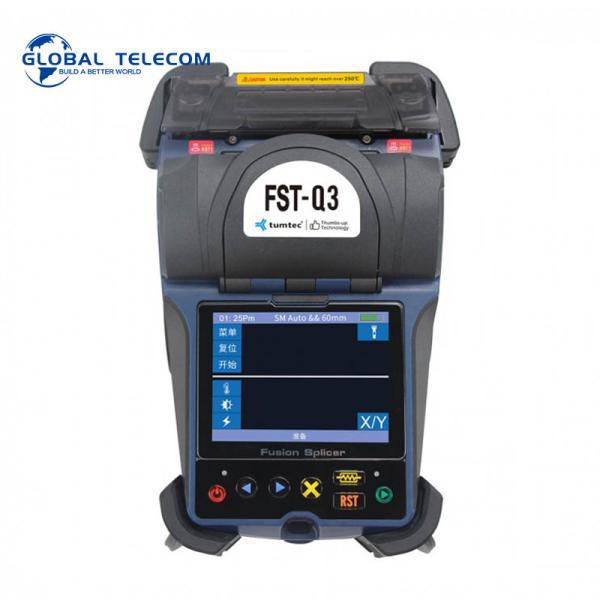

    FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine

    Ask Lasest Price
    Brand Name : Tumtec
    Model Number : FST-V1 FST-Q3
    Certification : CE/ROSH/IOS9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500sets
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine

    Tumtec FST-V1 FST-Q3 Optic Fiber Fusion Splicer Machine high quality hot sales fusion splicer

    Features
    Tumtec new fiber fusion splicer FST-V1, up to 3S boot, 6S splicing. 13S heating

    Compact active V-groove fusion splicer, Unique three-dimensional core setting, excellent splicing effect, lower loss, improve the work efficiency.
    FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
    FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint MachineFST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
    FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
    Model
    FST-Q3/V1
    Appicable Fibers
    SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
    Compatible Fiber/Cable
    0.25-3.0mm/Indoor Cable
    Cleaved Length
    Coating Diameter: 0.125-1mm/Cleave length:8-16mm
    Splicing Mode
    Preset 41 splicing modes, storable 100 modes
    Typical Splice Loss
    SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard)
    Return Loss
    ≥60db
    Lighting
    2 powerful white LEDs
    Splicing Time
    SM fast mode: 6s
    Estimated Splice Loss
    yes
    Protection Sleeve Length
    20-60mm
    Heating tank
    Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes
    Heating Time
    Fast heating time: 13s, Typical Heating Time: 30s
    Results Storage
    20000 latest records & 200 images
    Tension Test
    1.5-2.0N
    Display
    3.5" high resolution display with touch screen
    Fiber View & Magnification
    X,Y,XY,X/Y:380×Magnification
    Power Supply
    AC Input 100-240V,DC Input 12-15V
    Battery capacity
    2200mAh battery capacity
    Heating times
    typical above 120 times(splicing+heating)
    Operating Methods
    Button/Touch Screen
    Automatic Calibration
    Automatic ARC calibration by air pressure and temperature
    Electrode Life
    Automatic ARC calibration by air pressure and temperature
    Terminal
    USB 2.0
    Weight
    1.15 KG (including rubber Bumper)
    Dimension
    132W*205L*98Hmm (including rubber Bumper)
    Operating Condition
    Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s
    Storage Condition
    0~95% relative humidity, -40~80℃; battery storage: -20~30℃

    Quality FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine for sale
