    50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c

    Ask Lasest Price
    Brand Name : EXFO
    Model Number : Max-730C
    Certification : CE/ROSH/IOS9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c

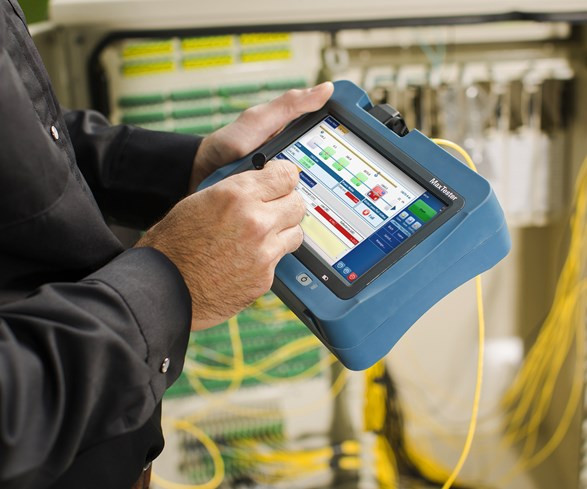

    Maxtester EXFO OTDR 730C

    Fiber Optic Tester Maxtester exfo max 730C FTTH handle mini exfo otdr sm mm with good price

    Features:
    Handy, lightweight, powerful, tablet-inspired design
    7-inch, outdoor-enhanced touchscreen – the biggest in
    the handheld industry
    12-hour autonomy
    Dead zones: EDZ 1 m, ADZ 4 m
    Dynamic range of 36/35dB
    Rugged design built for outside plant
    50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c

    Application:
    FTTx last-mile installation and troubleshooting
    Short access network testing
    FTTA-fi ber DAS installations
    CATV/HFC network testing

    50mAh OTDR Testing Machine , OTDR Exfo Maxtester 730c

    Display
    Two USB 2.0 ports; RJ-45 LAN 10/100 Mbit/s
    Storage
    2 GB internal memory (20 000 OTDR traces, typical)
    Batteries
    Rechargeable lithium-polymer battery

    12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
    Power supply
    Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
    Wavelength
    1310/1550nm
    Dynamic range
    30/28dB
    Event dead zone
    1m
    Attenuation dead zone
    4m
    Distance range
    0.1 to 160 km
    Pulse width
    5 ns to 20 us
    Linearity
    ±0.05dB
    Loss threshold
    0.01dB
    Loss resolution
    0.001dB
    Sampling resolution
    0.04 to 5m
    Sampling points
    Up to 256 000
