MTS-6000
The Viavi Solutions™ T-BERD/MTS-6000A is a highly integrated test
platform designed for all phases of network lifecycle from the
installation to the maintenance of fiber networks.
It provides field service technicians with the highest levels of
performance and upgradeability on the market today. Modular in
design, the T-BERD/MTS-6000A offers an extensive portfolio of test
functionality with over forty different modules supporting a wide
range of applications. The versatility of the T-BERD/MTS-6000A
allows technicians to standardize using one type of test equipment
and then introduce new testing capabilities in the field without
incurring additional training and device costs.
With field applications for servicing Metro Core telecom networks,
wireless/cable switch centers and backhaul networks, government
telecommunications and network equipment manufacturer field
installation and support groups, the Multi-Services Application and
fiber optics modules are the latest innovation for the
award-winning, industry-leading T-BERD/ MTS-family of test
solutions.
A powerful user interface helps the technician quickly set up and
evaluate tests as well as troubleshoot problems, reducing
operational expense.
Main Features

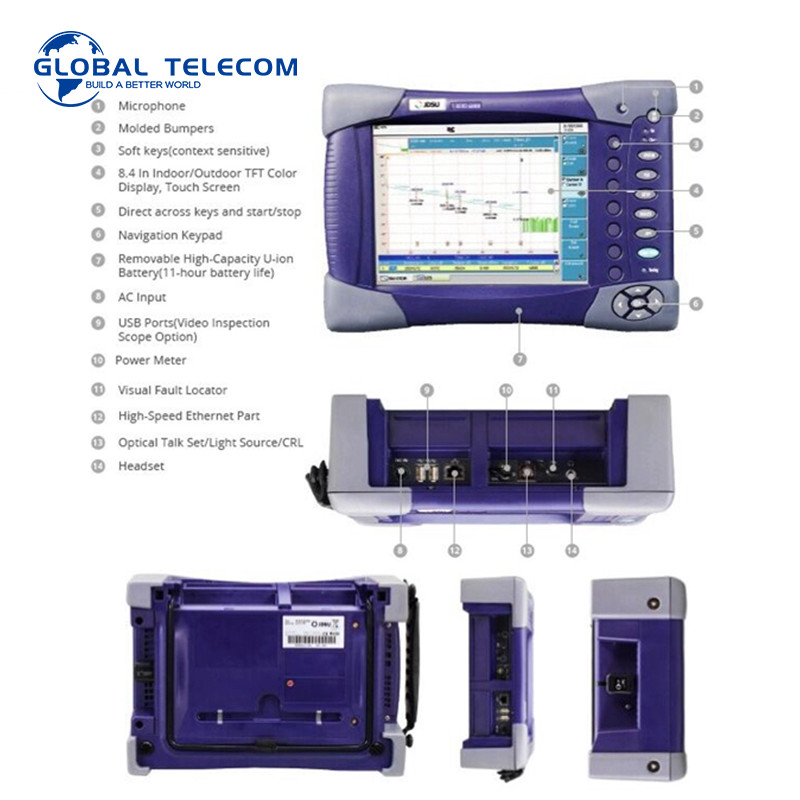

* Compact, lightweight, and highly integrated platform
* Multi-layer network solution from physical to services layer

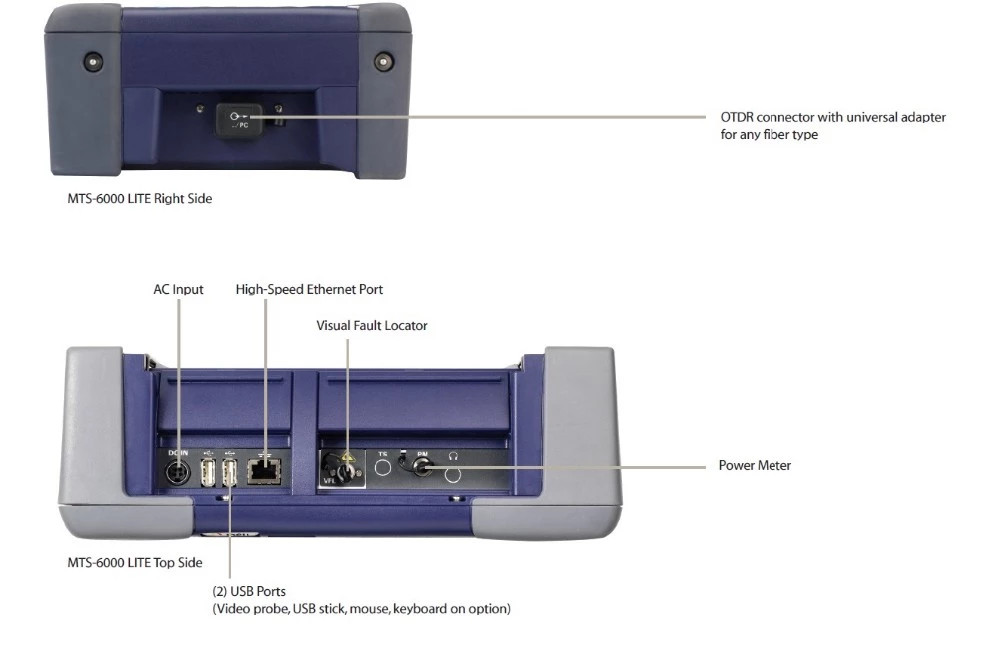

* Built-in VFL, power meter, LTS, ORL, and video inspection scope
options
* Over 40 application modules available for physical test on
single- and multimode fiber
* Multi-service capability allows Ethernet and SONET/SDH tests at
the same physical test port Modular form factor enables field
upgrade of test capabilities by adding or replacing PIMs and optics
on multi-services application module.
* Performs two independent Ethernet tests in parallel with
dual-port chassis
Application
* Performs multimode and single-mode OTDR and optical loss test
(bidirectional)
* Performs FTTx/PON and CWDM OTDR testing
* Performs 10G/10GE/40G fiber dispersion testing (PMD/CD/AP)
* Tests 10 GigE LAN- and WAN-PHY at 850,1310, and 1550 nm
* Tests dual- and single-port 10 Mb/s to 1 GigE
* Tests SONET/SDH at OC-3/STM-1 through OC-192/STM-64 line rates
* Tests TCP/UDP at 10 Mb/s to 10 Gb/s with stateful emulation
* Tests IP Video at 10 Mb/s to 10 GigE line rates
Standard Package
1. Main body
2. Built-in battery
3. OTDR module
4. AC adapter
5. standard connector port: FC/PC ;
6. Calibration Certificate
we also offer FC-LC, FC-SC and FC-ST adapters. plz contact us if
you need them.
Fiber alignment | Core/cladding alignment / Manual alignment | Splicing time | 5S(AI-9) | Heating time | Automatic heating(Preheating) | Focus mode | Six motors Auto focus | Applicable Fibers | SM(G.652&G.657),MM(G.651)DS(G.657),NZDS(G.655) | Splice Loss | 0.025dB(SM),0.01dB(MM), 0.04dB(DS/NZDS) | Control technology | Real-time control and calibration of fusion ARC | Return loss | Better than 60DB | Fiber diameter | Cladding Diameter(80-150μm),Coating Diameter(100-1000μm) | Fiber Cleave Length | Coating less than 250μm(8-16mm),Coating less than 250-1000μm(16mm) | Shrinkable tube | 60mm,40mm | Size | 130mm*122*148 | Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current |
|
