FSM 66S Fiber Optic Assembly , 0.03dB Fujikura 66s Splicing Machine core alignment

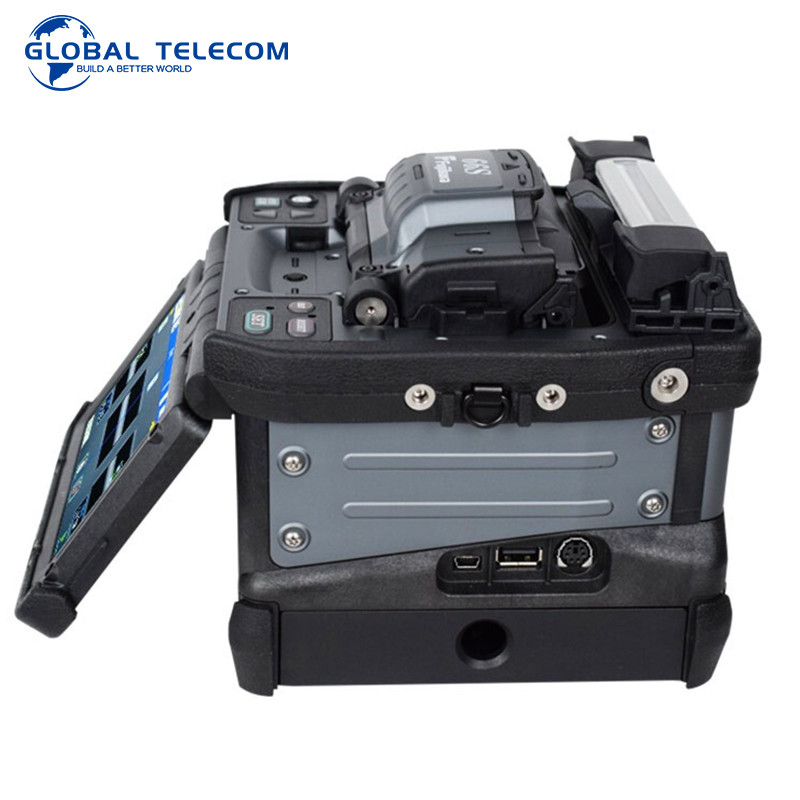

Fujikura FSM-66S fusion splicer japan fujikura fsm 66S core
alignment fiber splicign machine

FSM 66S/87S/88S is a fusion splicer with a high precision lenses,
which provide an accurate core-to-core alignment. Also, these
lenses allow the splicer to discriminate between fiber types.The
88S possesses advanced image processing technology which analyzes
the profile of the fiber image as a brightness pattern. The tool
finds the true core position and achieves the consistent lower
splice loss. The device features fiber discrimination function: it
automatically identifies the optimum arc discharge parameters in
accordance with the fiber type.

Features:

Core alignment technology
Advanced image processing technology
Fiber discrimination function

Fiber alignment method	Active core alignment
Fiber count	Single fiber
Fiber type	Single mode, Multi mode
Cladding dia.	80 to 150μm
Sheath clamp	Coating dia. : Max. 3,000μm
Sheath clamp	Cleave length : 5 to 16mm
Splice loss	G.652: 0.02dB, G.651: 0.01dB, G.653: 0.04dB, G.655: 0.04dB, G.657: 0.02dB
Splice time	SM FAST mode: 7 to 9sec. AUTO mode: 14 to 16sec.
Protection sleeve	Length: 66mm; dia.: Max. 6.0mm before shrinking
Heat time	60mm slim mode : 9 to 10sec. 60mm mode : 13 to 15sec.
Fiber tensile test force	Approx. 2.0N
Electrode life	5,000 splices
Dimensions	170W x 173D x 150H (mm)
Weight	2.8kg including battery
Environmental condition	Operate: temperature : -40 to 80 degree; Humidity: 0 to 95% non-condensing; Storage: temperature : -10 to 50 degree; Humidity: 0 to 95% non-condensing; Altitude: Max. 5,000m
AC adaptor Input	AC100 to 240V, 50/60Hz, Max. 1.5A
Battery	Rechargeable Lithium Ion Output Approx. DC14.4V / 6,380mAh Capacity 300 splice and heat cycles Temperature Recharge : 0 to 30 degree, Storage : -20 to 30 degree
LCD monitor	TFT 5 inches with touch screen
Magnification	200 to 320x Illumination
Illumination	LED lamp
Interface	PC: USB 2.0 Mini B type External LED lamp: USB2.0 A, Approx. DC5V, 500mA Ribbon Stripper: Mini DIN 6pin DC12V, Max. 1A Wireless: Bluetooth 4.1 LE
Data storage	Splice mode: 100; Heat mode: 30; Splice result: 20,000; image 100 images
