    Arc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTH

    Ask Lasest Price
    Brand Name : Fujikura
    Model Number : FSM-70S
    Certification : CE/Rosh/ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per month
    Delivery Time : 5-8 working days after payment depends on quantity
    • Product Details
    • Company Profile

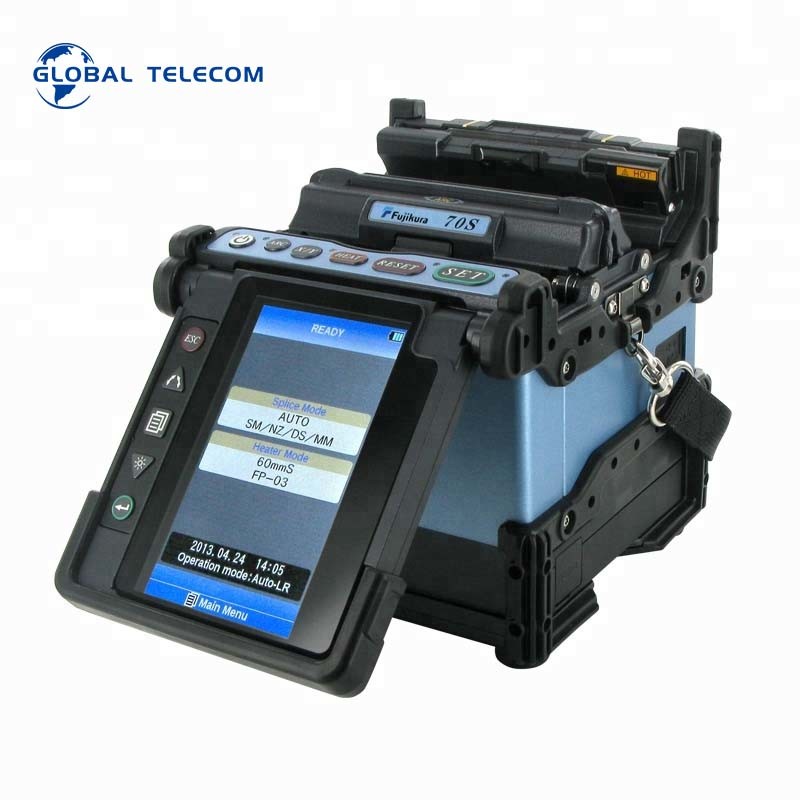

    Arc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTH

    Japanese brand fujikura FSM-70S with CT-30 cleaver arc fusion splicer for fiber optic splicing machine

    Fujikura fusion splicer with CT-06 or CT-30 fiber cleaver, 4.1" color screen, standard accessories, Multiple foreign languages menu is optional.

    Features:
    1.Automated and programmable wind protector
    2.14-second automated tube heater
    3.Fully ruggedized for shock, dust and moisture
    4.Li-Ion battery with 200 splices/shrinks per charge
    5. 5mm cleave length for splice on connector or small package needs
    6.Sheath clamp or fiber holder operation
    7.On-board training and support videos
    8.Internet software upgrades
    9.Multi-function transit case with integrated workstation
    Parameter
    Applicable fibers

    Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF

    (G.655)

    Cladding dia.80-150um
    Cleave length5mm to 16mm with sheath clamp
    Splice mode / heating modeTotal 100 splice modes / 30 heating modes
    Splice loss

    0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and

    0.04dB (NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.


    Attenuation splice function


    Intentional high splice loss of 0.1dB to 15dB(0.1dB step)can be made for an in-line fixed attenuator.
    Splice time / tube heating timeTypical 7sec with SM / Typical 14sec with FP-03 (60mm) sleeve
    Splice result storageLast 2000 splices
    Viewing methods / magnification

    2 axis CMOS camera with 4.73” color LCD.

    X / Y (320X magnification), or both X and Y simultaneously (200X magnification)

    Tension test1.96 to 2.25N
    Applicable protection sleeve60mm, 40mm and Fujikura micro sleeves
    No. of splice / heating per battery full chargeTypical 200 cycles with BTR-09
    Electrode life3000 splices
    Size / weight146W x 159D x 150H (mm) / 2.7kg (including battery)
    Operating condition

    Altitude : 0 to 5,000m above sea level, Wind : 15m/sec

    Temperature : -10 to 50deg C,

    Humidity : 0 to 95%RH, non-dew

    Resistance features*1

    Shock : 76cm (30inch) all surface drop

    Dust : Exposure to dust (0.1 to 500um dia Alumina Silicate), IP5X Rain :H=10mm/hr for 10min, IPX2

    Other featuresPC software upgrade / data management
    Terminals

    USB 2.0 (Mini-B type) connector for PC communication.

    6-pin Mini-DIN connector for HJS-02 or HJS-03 power supply


    Arc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTHArc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTHArc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTH
