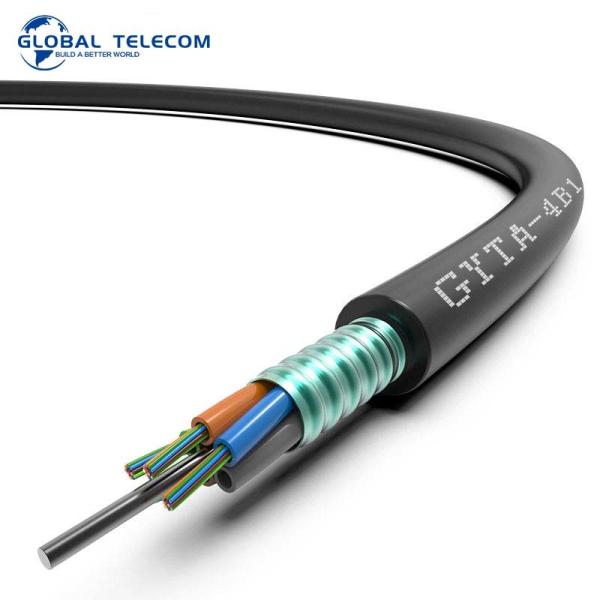

Outdoor aerial cable 4/6/8/12/24/48/96/144 core fiber optic cable GYTA G652D Single mode optical fiber cable

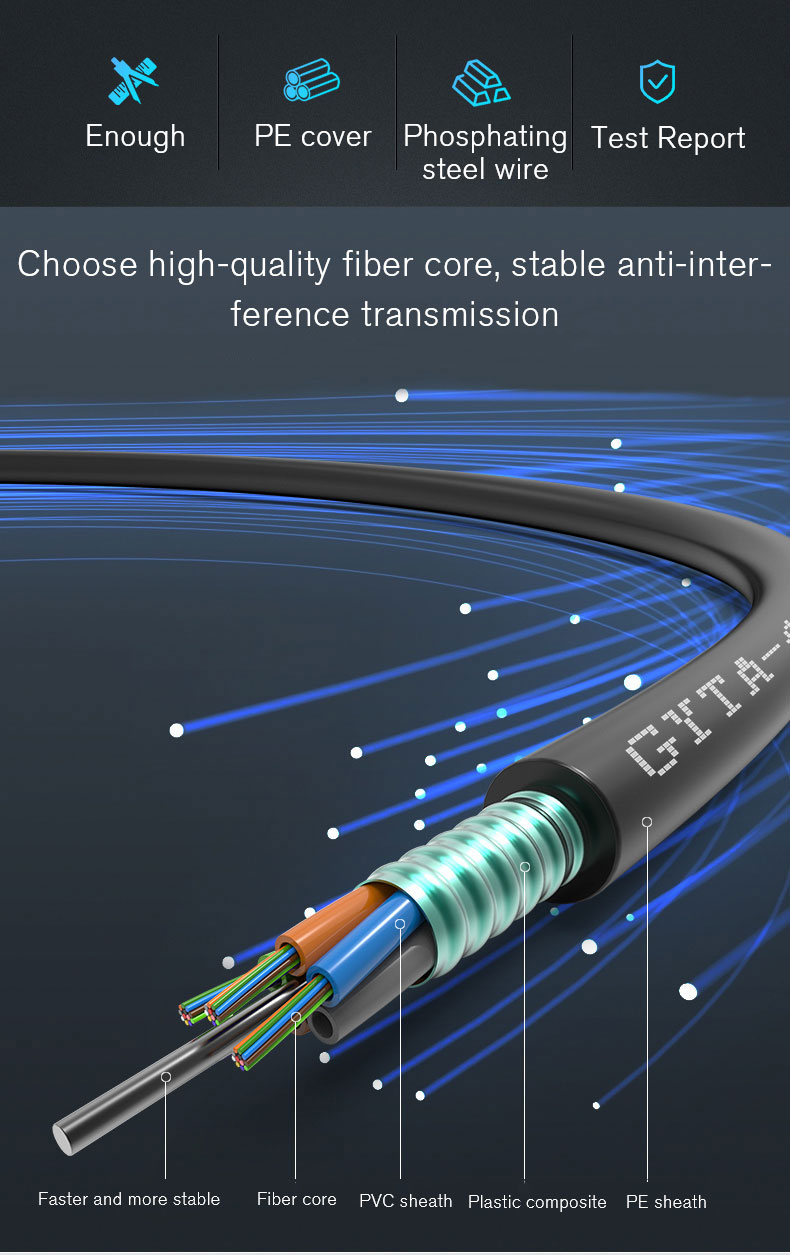

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Optical Characteristics

Feature

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member

Standard Fiber Colour Identification

NOTE:

a. The colour of fiber in loose tube is arranged from No.1 colour successively

b. Other colour indentifications available on request

Tube Full Colour Identification

NOTE:

a. The colour of loose tube in cable is arranged from No.1 colour successively

Application Scope:

♥ Adapted to outdoor distribution.

♥ Suitable for aerial, pipeline laying method.

♥ Long distance and local area network communication.

fiber optic cable price per meter

Features:

♥ Corrugated Steel Armor:

Provide additional mechanical protection;

♥ Two Parallel Steel:

Improving the tensile strength;

♥ Medium Density Polythylene Jacket:

Low friction in installation;

Excellent protection from environmental hazards;

♥ Sheath Markings:

Provide positive identification and length verification;

Customized print available;

Optical embedded stripe available for additional cable identification;

♥ Cable Watertight Method:

PSP enhancing moisture-proof

Loose tube filling compound
